OGA LED 54 series V12 dual-color 10 inches LED light bar wholesale

◆ Slim Design But Achieve High Lumens Output

◆ Customized Half Convex Reflector Design

◆ Screwless-Bezel Design with Hardened PC

◆ Versatile Mounting Options

◆ Special Holes design

◆ Optional Configurations

Wholesale request

amber off road led light bar

Product specifications

PRODUCT NAME OGA-54-10"-D-WA SKU# 4LA540
COLOR TEMP.

6000K/AMBER

LED(PCS) 4 x 30W 3570 LED
LENTH(INCH/MM) 8.86"/225 VOLT(V) 9-36V
LUMENS(LM)

2344LM WHITE

1720LM AMBER

2161LM WHITE&AMBER

WATT(W)

60W WHITE

60W AMBER

BEAM PATTERN DRIVING WARRANTY 2 YEARS

Features

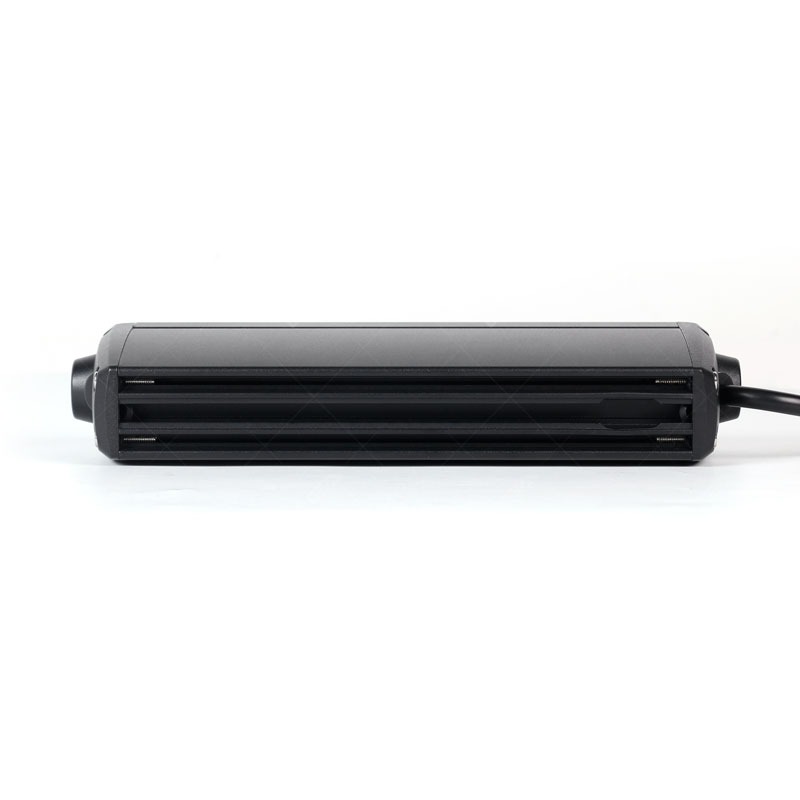

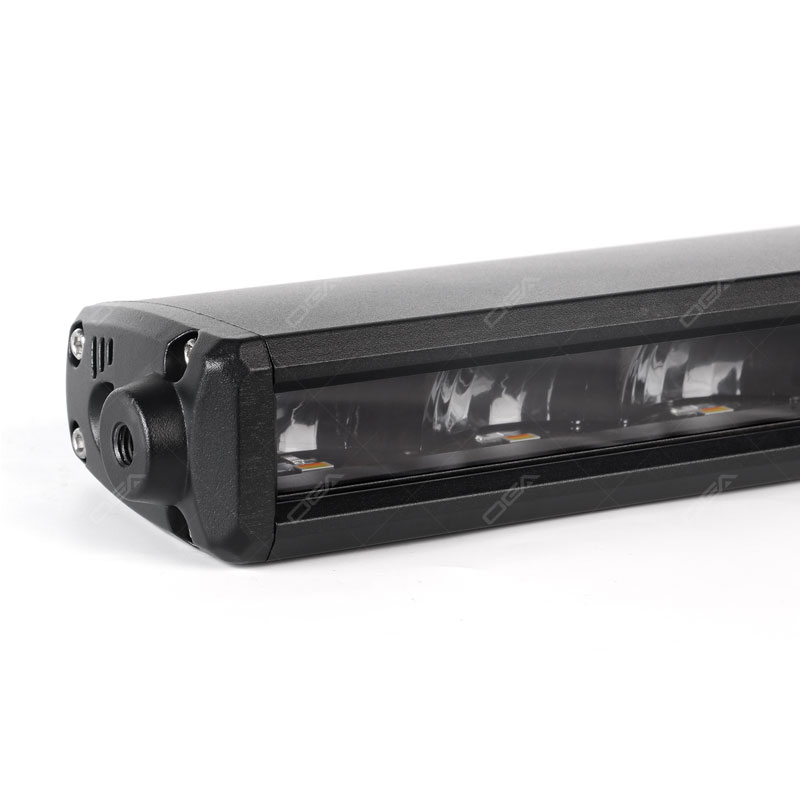

Slim Design But Achieve High Lumens Output
Without sacrificing brightness, the OGA LED 54 series LED light bars' super slim and low-profile housing allows them to be mounted in more places; the slim design allows the light bars to have less air resistance and minimizes the wind noise; the slim design also cuts down the weight of the light bar, lowering the shipment cost.
led driving spot lights

Customized Half Convex Reflector Design

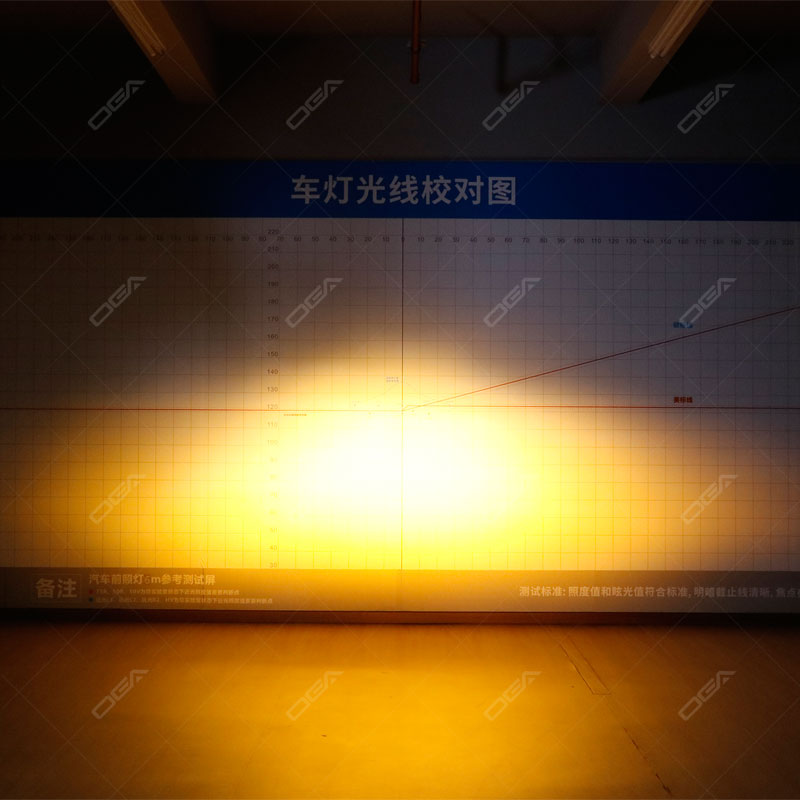

The half convex reflector is the newest and trending optical component. Unlike the traditional reflector cups, the half convex reflectors used in OGA LED's 54 series LED light bars are high efficient chrome reflectors. They lessen the stray light emission, producing a more precise driving beam pattern. In the meanwhile, they can minimize the loss of light efficiency, creating a higher light intensity at longer range. Thereby,  a good half convex reflector design can offer a much safer driving experience.
led light bar off road china

Screwless-Bezel Design
Screwless-bezel means less water ingress possibility and better waterproof, this kind of design is very popular now, which doesn't like the traditional light bar front face with the screws on that has the risk for getting issues like water leakage and condensation. We also use built-in waterproof rubber strips behind the front frame to create a better sealing for moisture.
led long range driving lights

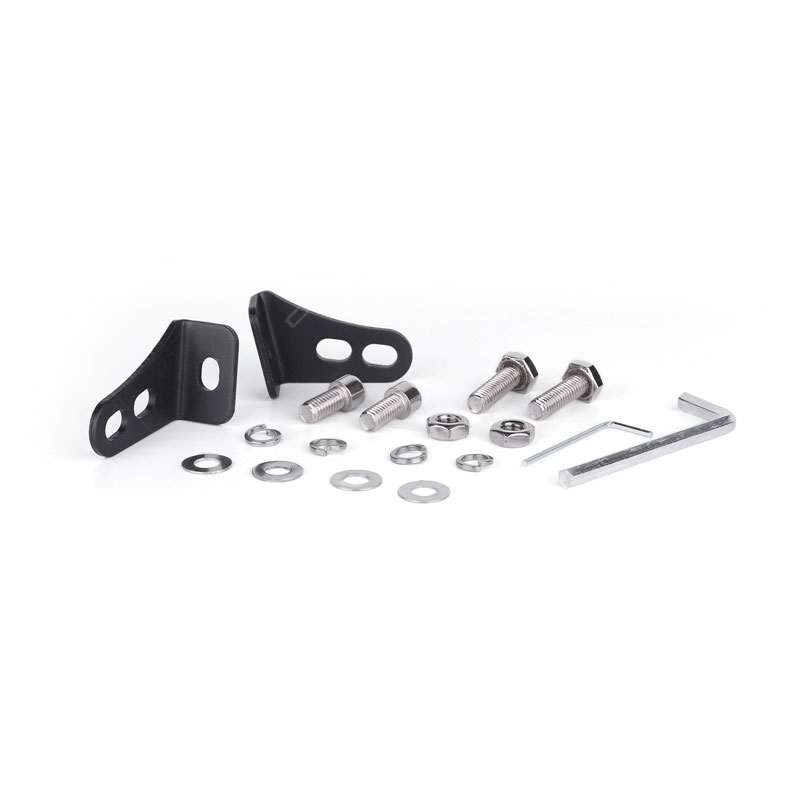

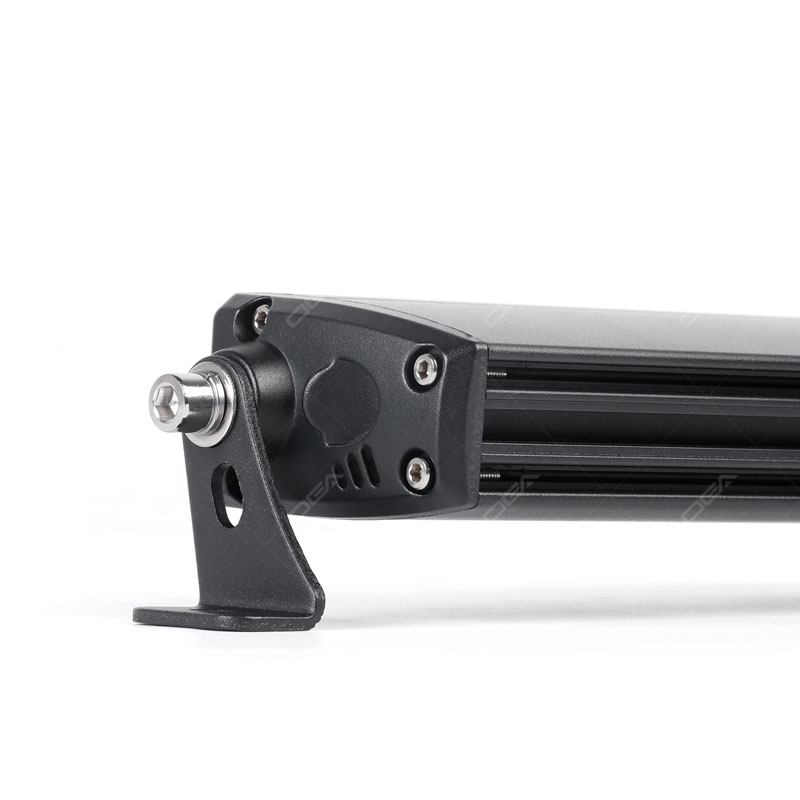

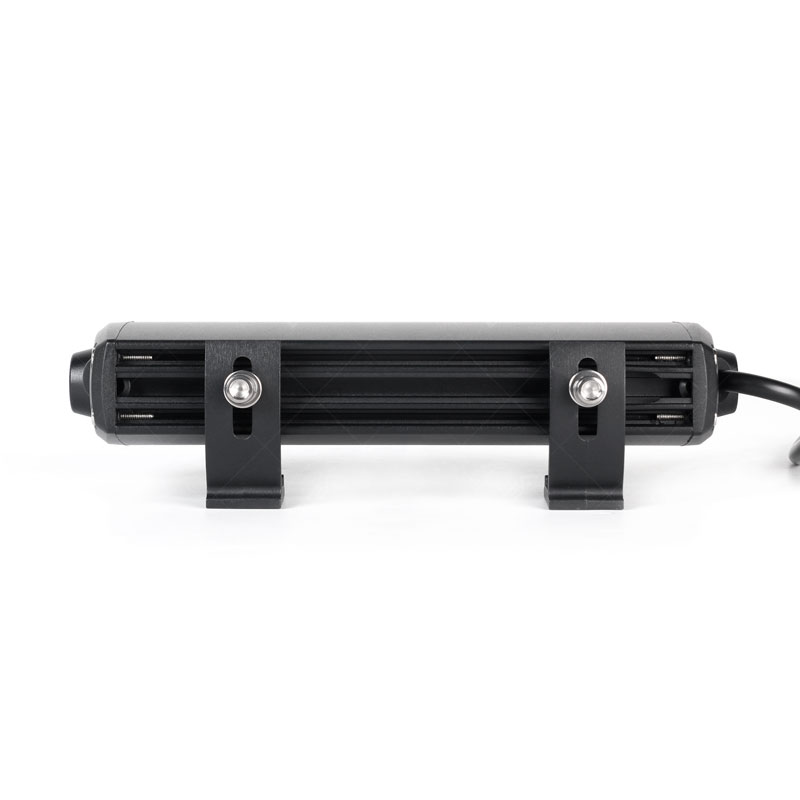

Versatile Mounting Options

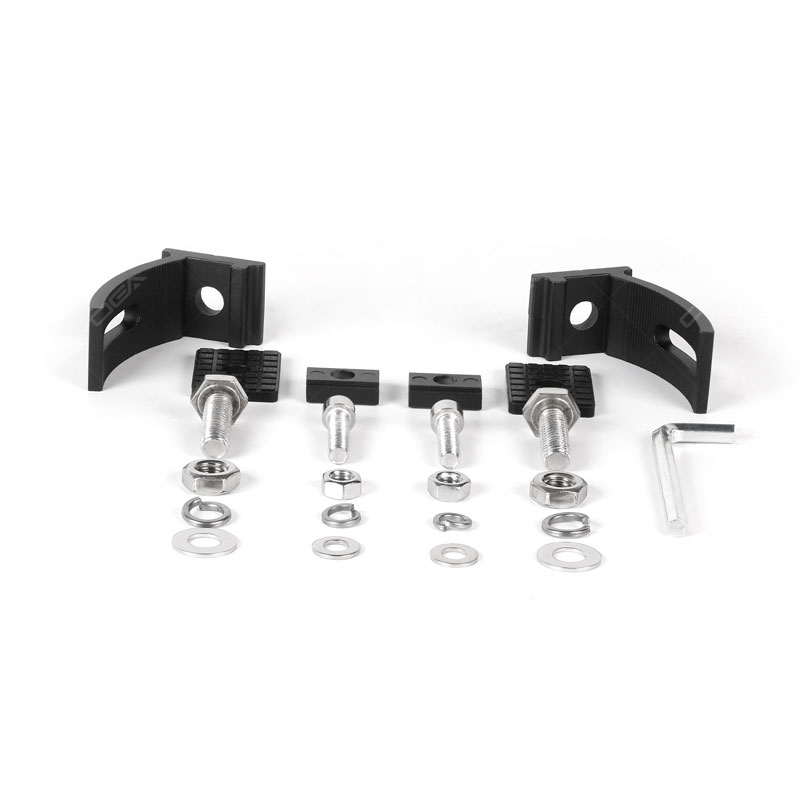

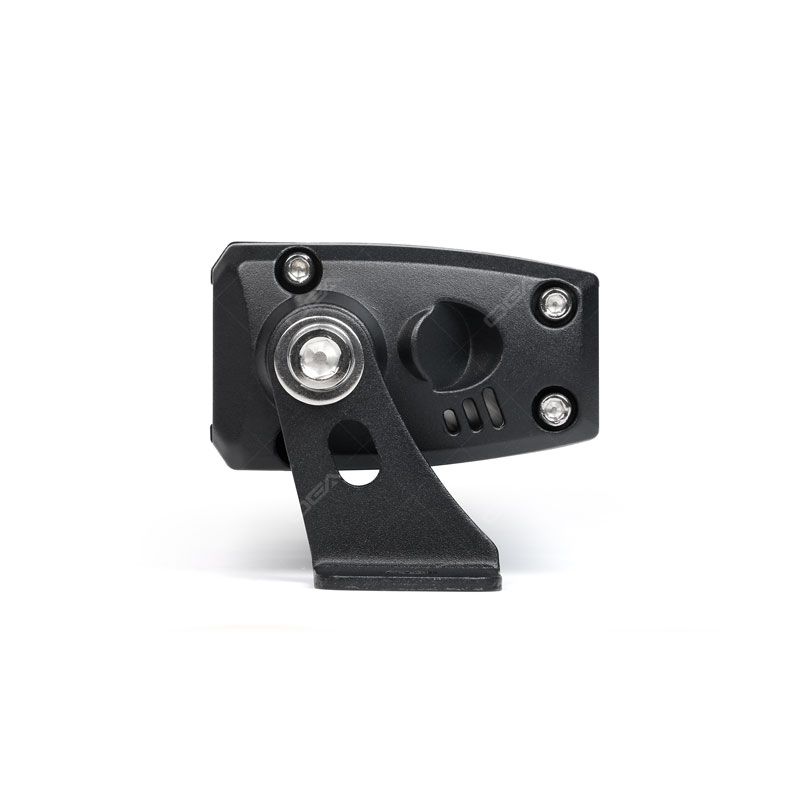

There are two sets of mounting brackets coming with the OGA LED 54 series LED light bars. Users can choose side brackets or bottom brackets according to their needs. With some maybe or maybe not needed drilling or modifying, the way to mount 54 series LED light bars by using side brackets is plain and simple.
long range led driving lights

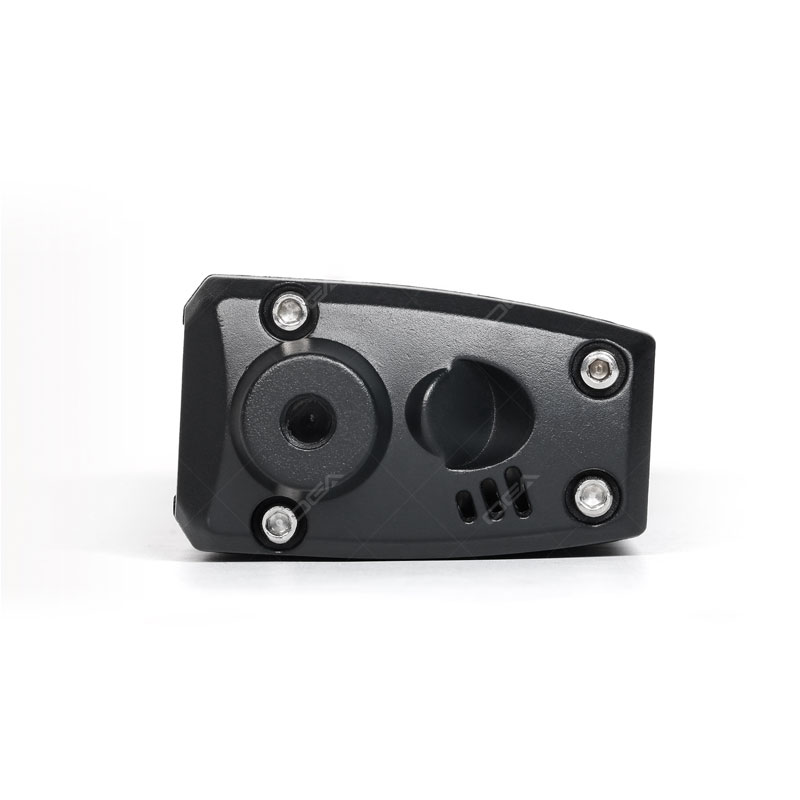

Special Holes design
The OGA LED 54 series LED light bar features the exclusive pressure equalization vent to eliminate thermal expansion and pressure cycling, preventing water from entering the light body.
truck driving lights led

Hardened PC
The OGA LED 54 series LED light bar features the hardened polycarbonate (PC) lens for high impact resistance and scratch resistance.
universal led driving lights

Single Color Light Bars and Dual Color Light Bars Optional

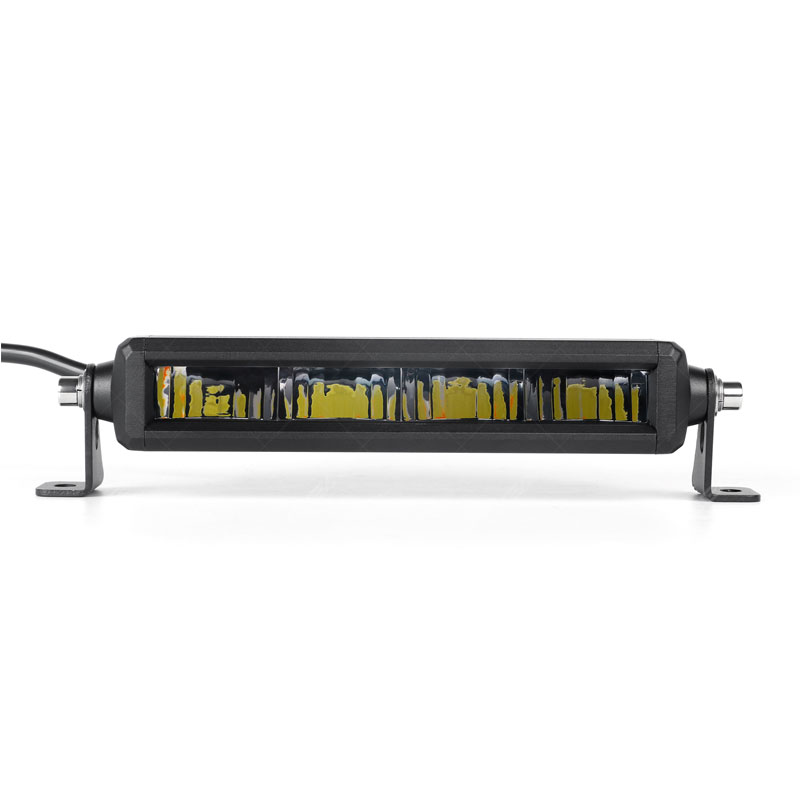

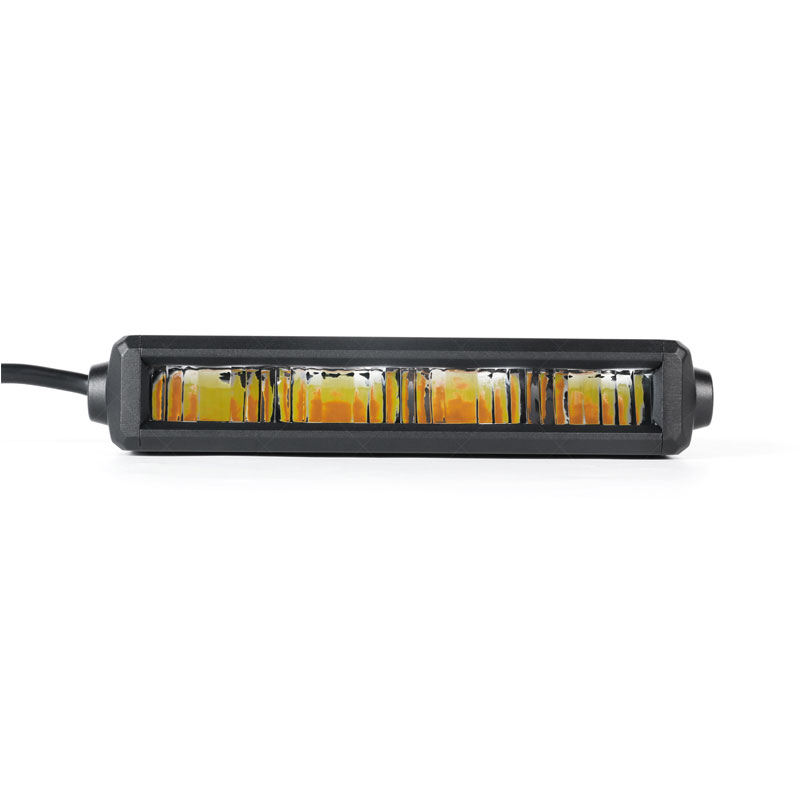

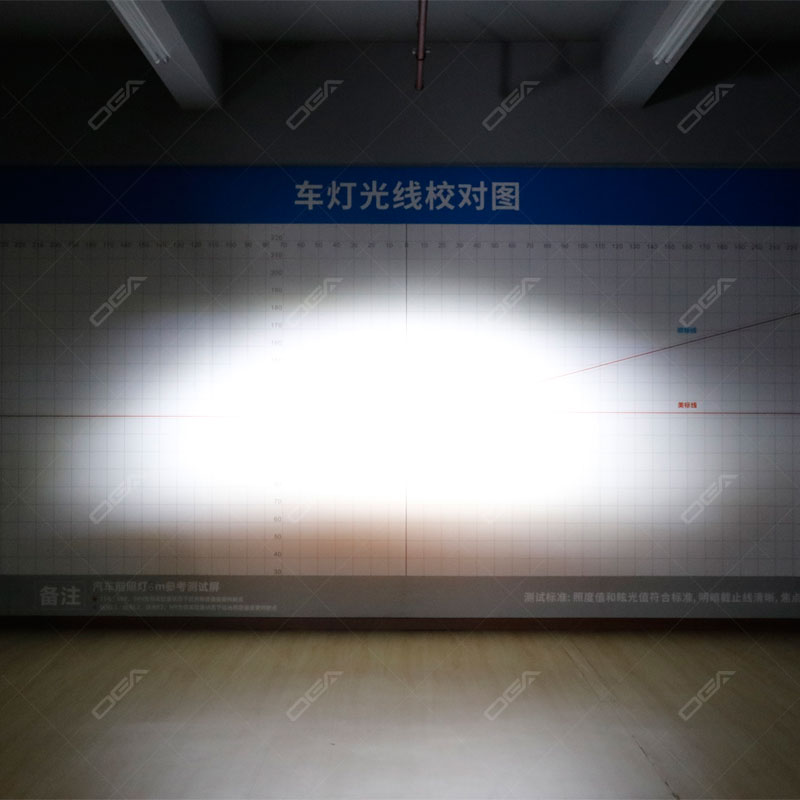

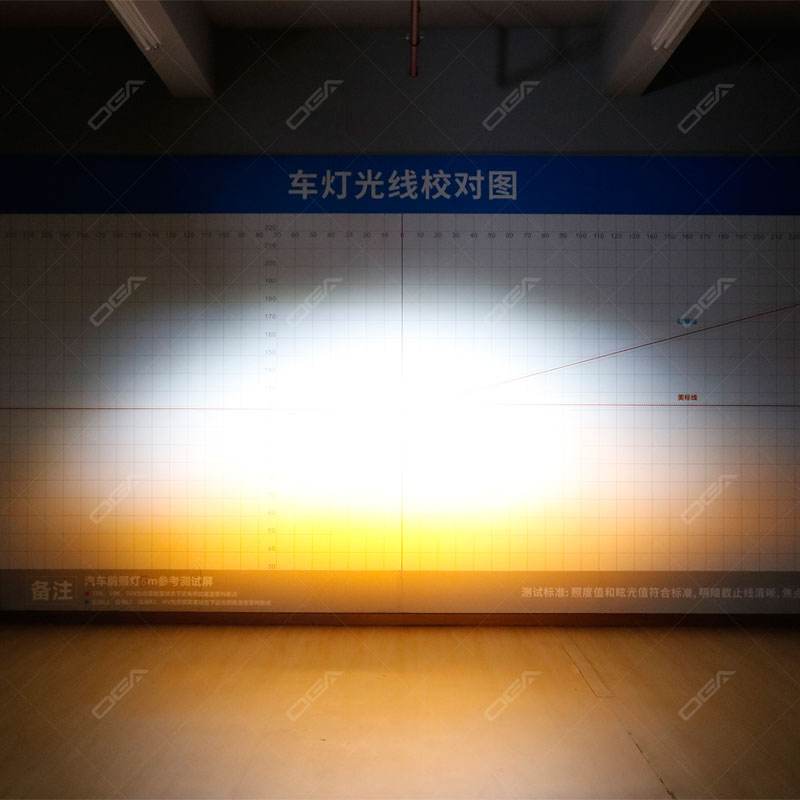

There are two lighting color configurations optional for our 54 series LED light bars: white single color, and white/amber dual color. For dual-color type, there are 3 different modes: white, amber, and white combined with amber.
amber led driving lights

automotive led driving lights

automotive work light bar

led light bar driving

brightest led driving lights

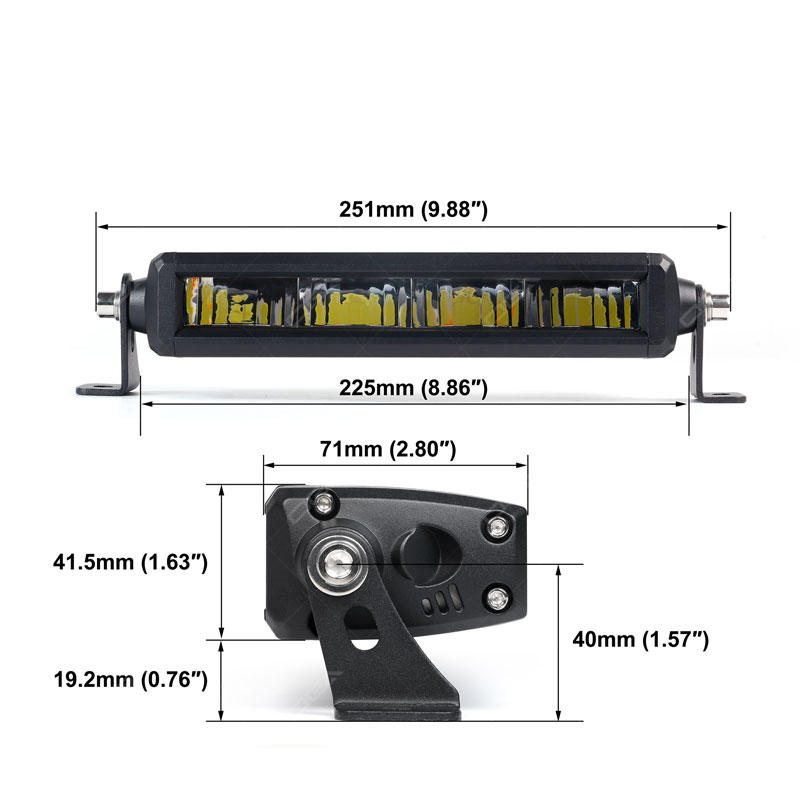

Product Size
