LG Series LG0365 Slim Four Projector Lens High Brightness Grille Light

SKU# LG0365

Warranty: 18 Months Color Temp: 6500K High Lumens: 2962LM Low Lumens: 2124LM

◆ Projector Lens Designs

◆ High and Low Beam Balance

◆ Thin Design

◆ IP67 Waterproof

◆ Built-in Smart Temperature Control Driver

◆ Selectable Lighting Levels

Wholesale request

Details

projector lens grille light details

I Product specifications

PRODUCT NAME	LG0365-WHITE	LED SOURCE	GC-7035
POWER OUTPUT	H: 66.92 W L: 51.19 W	LUMENS	H: 2962 LM L: 2124 LM
COLOR TEMP.	6500K ± 500K	VOLTAGE COMP. (DC)	9-16V DC, 4.0±0.6A@12.0V
WARRANTY	18 MONTHS	UNIT	SET=2PCS

I Features

The LG Series LED Grille Light combines projector lens optics, balanced high and low beam performance, waterproof protection, and flexible control functions in a compact grille light design. Built with a slim housing and die cast aluminum body, this series is a practical choice if you need reliable auxiliary lighting, easier installation, and a cleaner front end appearance. With multiple models available, it is well suited for a wide range of vehicle applications where both lighting performance and installation flexibility matter.

1. PROJECTOR LENS DESIGN

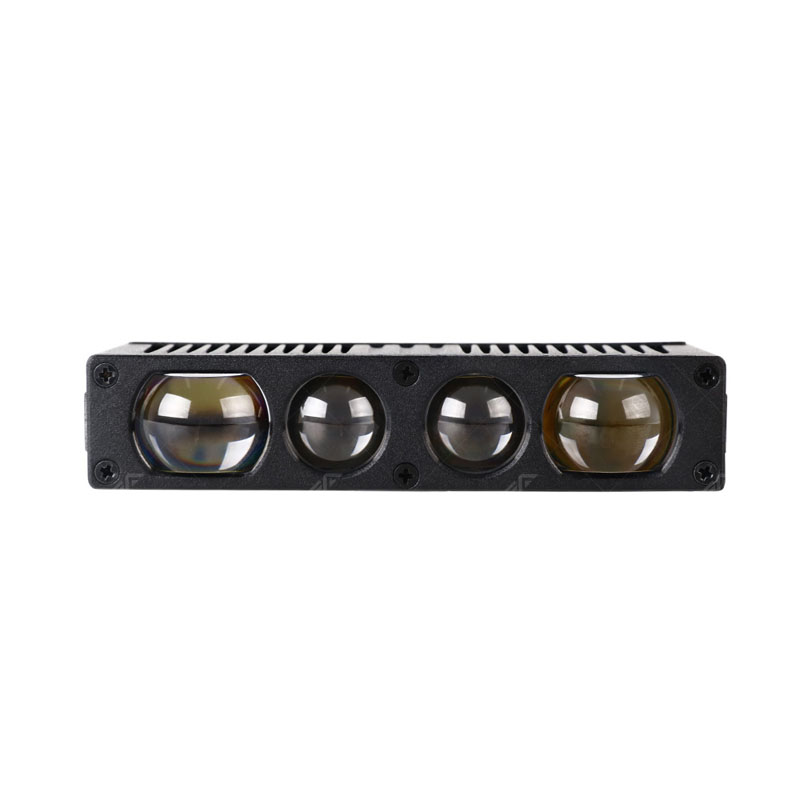

The LG Series features a projector lens design that creates a more focused and distinctive front appearance. Compared with ordinary grille lights, this optical structure gives the lamp a cleaner and more premium look while supporting more controlled light output.

2. MULTIPLE MODELS IN ONE SERIES

The series includes multiple model options, helping users match different grille layouts and installation spaces more easily. This makes the product line more flexible for a wider range of vehicle front end applications.

3. HIGH AND LOW BEAM BALANCE

The LG Series is designed with both high beam and low beam functions, offering a more balanced lighting solution in a compact grille light format. This design helps improve practical use by giving users more usable lighting support in different driving conditions.

4. REAL LIFE LIGHTING EFFECT

This product series showcases lighting performance that emphasizes long-distance illumination, wide beam coverage, and high brightness output. It is ideal for users seeking better forward visibility and a more efficient auxiliary lighting experience.

5. SELECTABLE LIGHTING LEVELS

Selectable low beam and high beam levels give users more control over the lighting output. This feature makes the series more adaptable to different road, weather, and driving situations where different beam levels may be preferred.

6. IP67 WATERPROOF AND SMART TEMPERATURE CONTROL

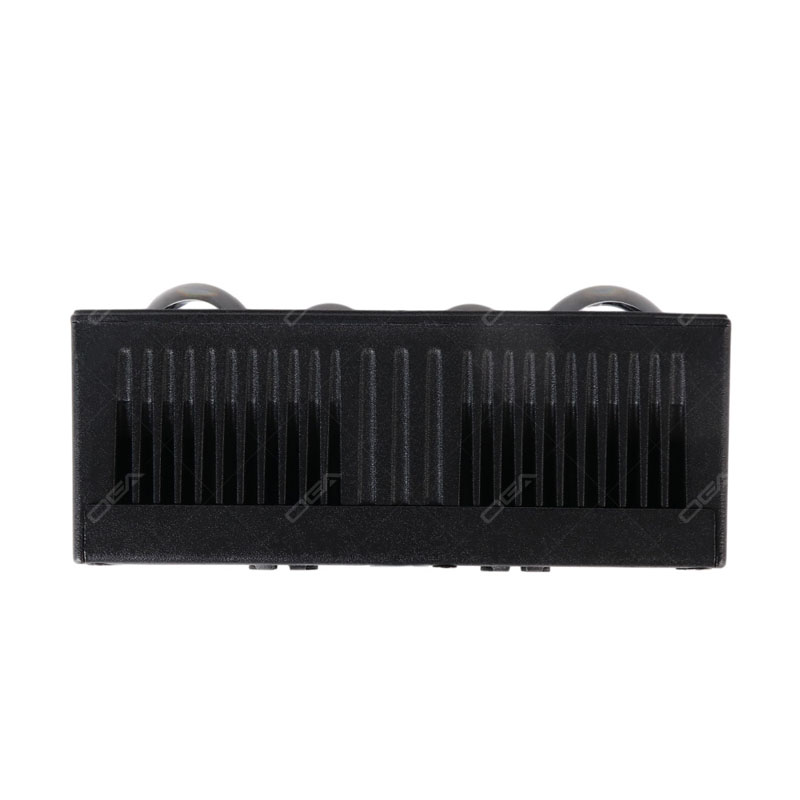

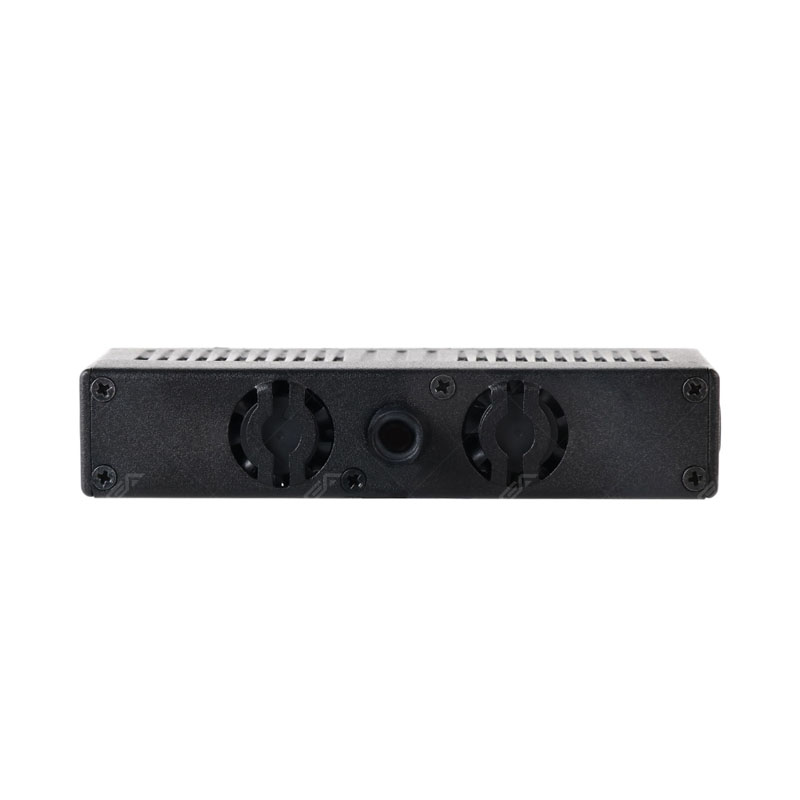

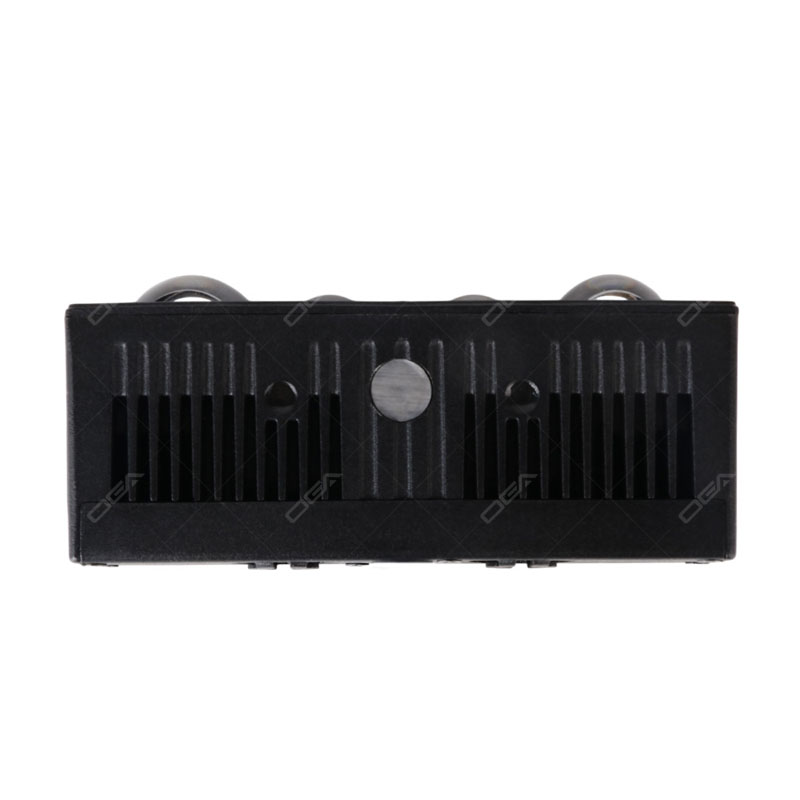

Built with IP67 waterproof protection, the light is designed to handle rain, splashes, and other demanding outdoor conditions more reliably. It also features a built in smart temperature control driver and an efficient airflow design to support rapid cooling, helping maintain stable performance, improve durability, and protect internal components during operation.

7. BREATHABLE DESIGN FOR DURABILITY AND SAFETY

The breathable design is developed to support enhanced durability and safety during operation. This structural feature helps the lamp maintain more stable performance in practical vehicle use and supports overall product reliability.

8. THIN DESIGN AND EASY INSTALLATION

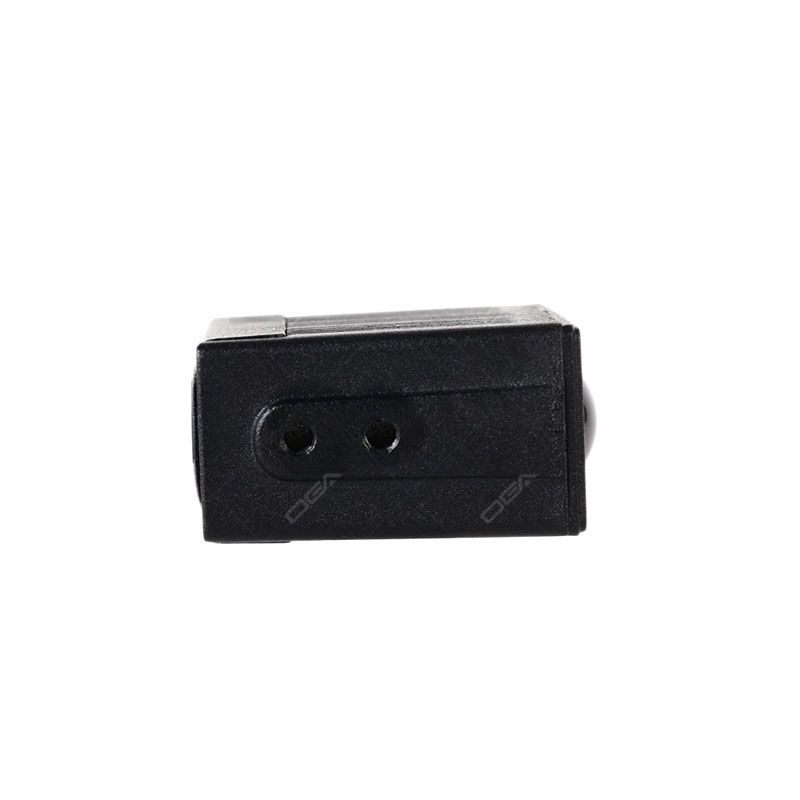

The thin body design helps the lamp fit a wider range of vehicle models and grille spaces. This gives installers more flexibility when working with different front end structures and helps improve fitment compatibility. The LG Series is designed for easy installation and uses an L shaped mounting bracket for more practical application. This mounting structure helps make the lamp easier to position and supports installation across a variety of vehicle setups.

9. MULTIPLE MODE CONTROLLER

The controller provides multiple operating options, including low beam mode switching, breathing mode, high beam mode switching, strobe mode, and a power switch. These functions give users more flexibility in how the grille light is used in different situations.

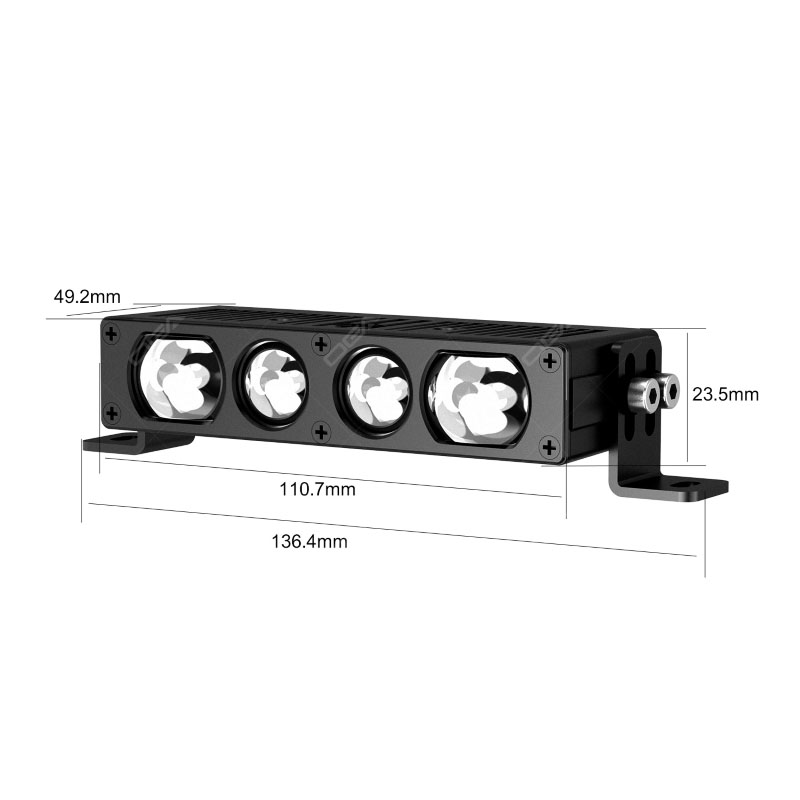

I Product Size
