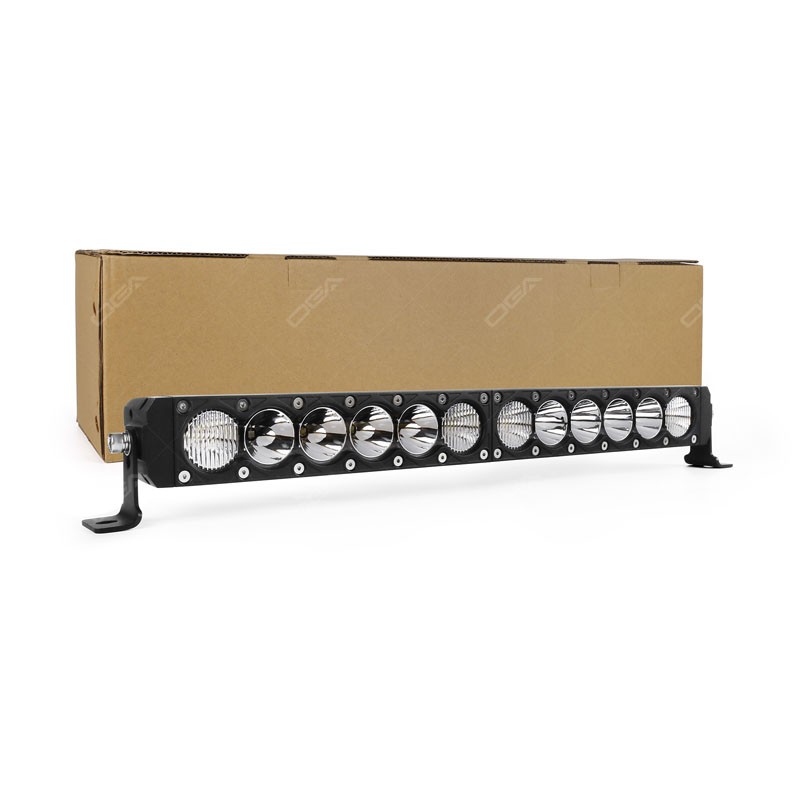

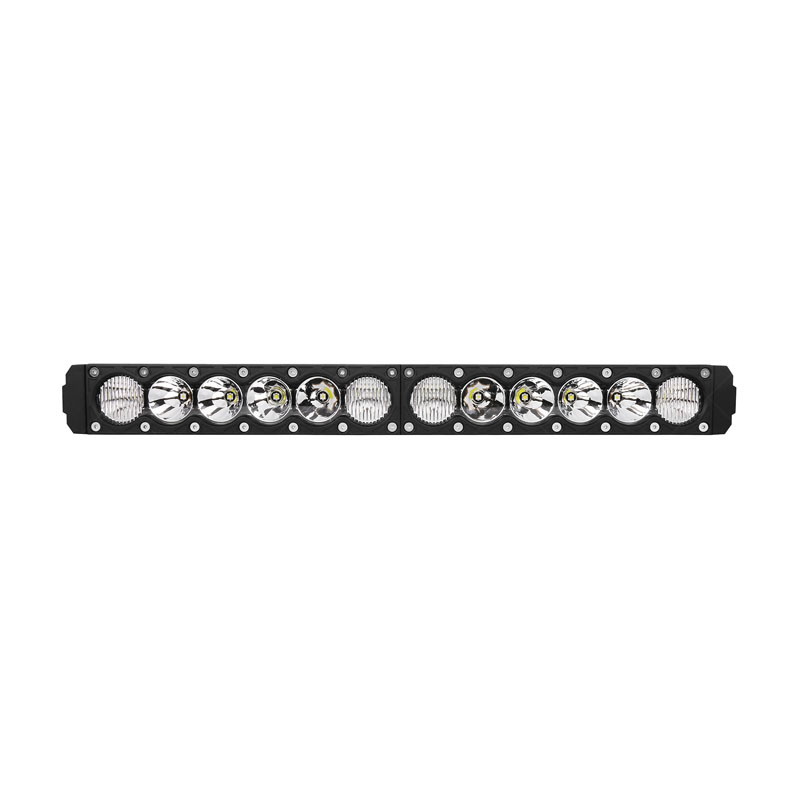

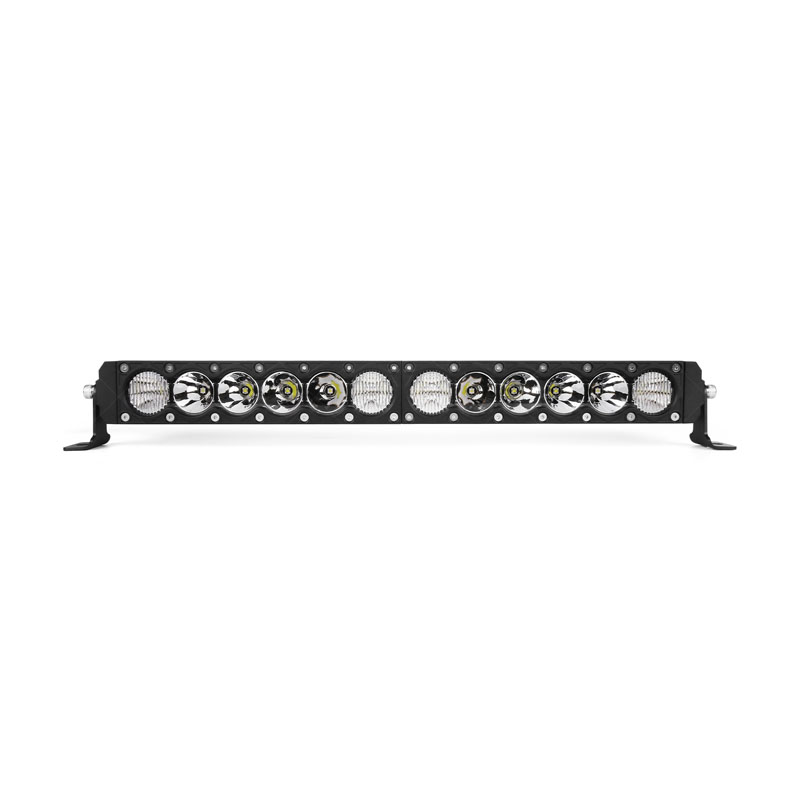

21 inch Amber Backlit Combo Beam LED Light Bar

SKU# 4PB8D0

Usage: Combo beam Warranty: 2 years Color temp: 7200K Lumens: 17195LM

◆ Expanded Luminus LED array, high output

◆ Amber backlit signature with 44 × 0.5 W LEDs

◆ Combo beam, verified 1 lux @ 471 m

◆ IP67-sealed aluminum housing

◆ Measured 17,195 lm ±10%

◆ Slim single-row profile

Wholesale request

Details PDF download-1

11 inch led bar distributor

I Product specifications

PRODUCT NAME	OGA-63BLC-21"-CO	COLOR TEMP.	7200K ±500K
LED SOURCE	8 × 24W Luminus + 4 × 20W Luminus (main) 44 × 0.5W (amber backlit)	ACTUAL LUMENS	17195LM ±10%
POWER OUTPUT	272W ±10%	VOLTAGE COMPATIBILITY	10–30V DC, 18.54A @ 12.98V

I Features

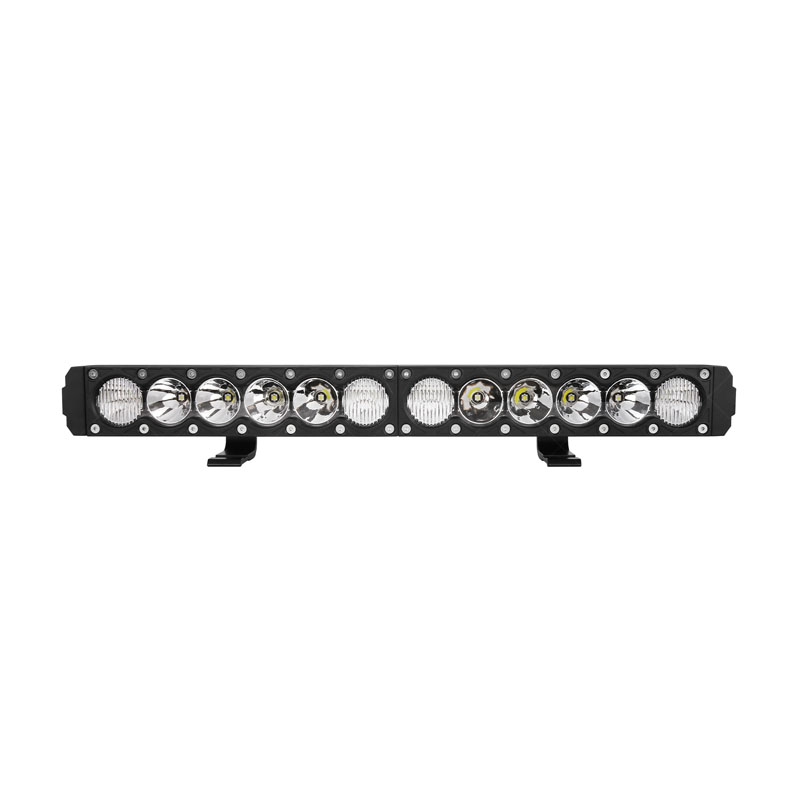

The OGA 63BLC 21" single row LED light bar scales output and coverage in a low-profile 21.58 × 2.60 × 2.24 in format. With a high-power Luminus array, amber backlit line, and combo optics, it suits trucks, SUVs, UTVs, and utility builds requiring strong distance and peripheral visibility.

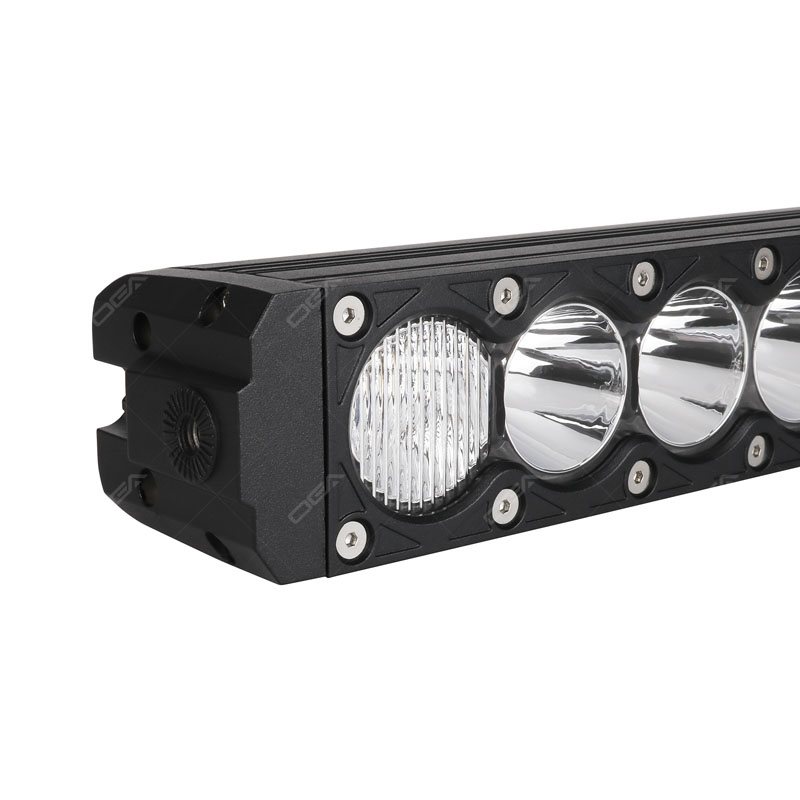

EXPANDED LUMINUS OUTPUT

The main array uses 8 × 24 W and 4 × 20 W Luminus LEDs for a rated 272 W ± 10% and measured 17,195 lm ± 10%. The increased emitter count raises peak candela while maintaining a broad, usable spread.

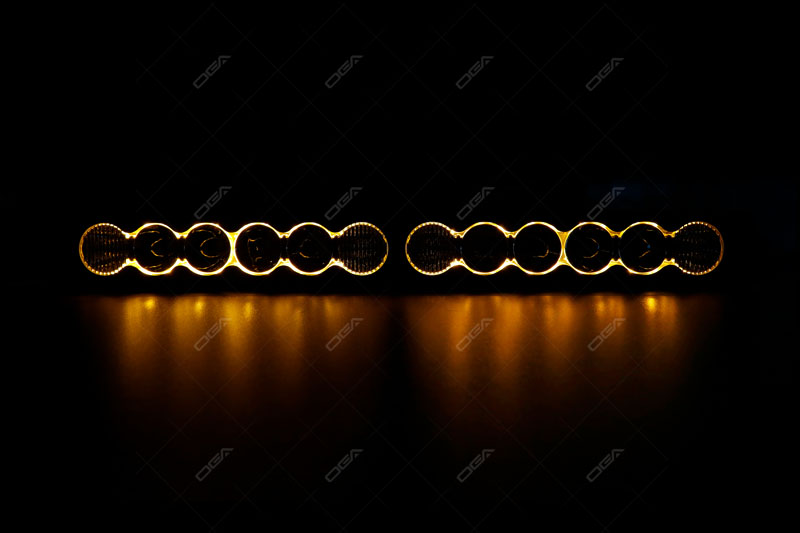

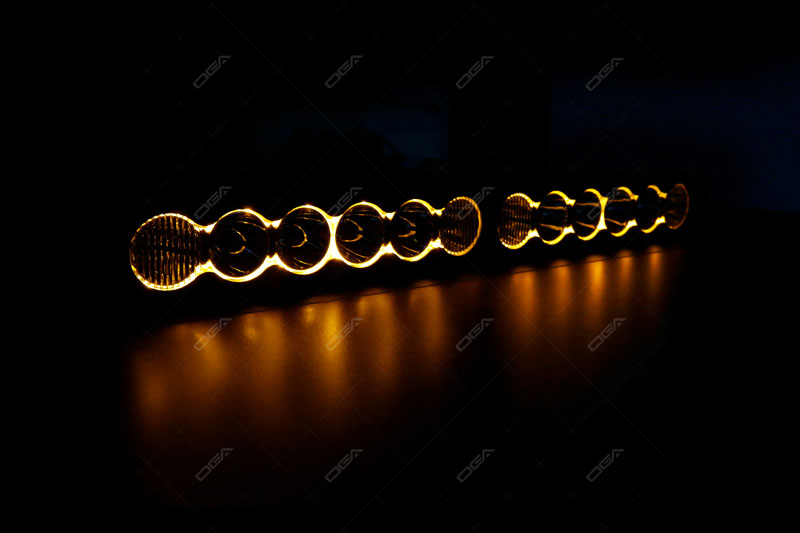

AMBER BACKLIT LINE

A continuous amber signature from 44 × 0.5 W LEDs runs the length of the bar. It provides a distinctive visual identity when the primary beam is off, without adding separate accent lighting.

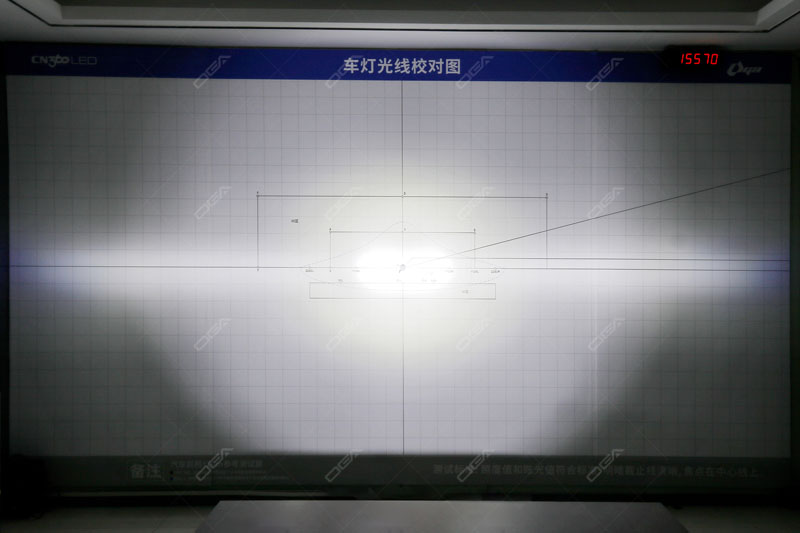

COMBO BEAM WITH LONG REACH

Balanced optics deliver both range and width, measured at 1 lux @ 471 m. The main beam color is 7,200 K ± 500 K, giving crisp object definition and roadside awareness on clear nights.

ELECTRICAL RANGE FOR BUILDS & FLEETS

Compatible with 10–30 V DC systems and drawing about 18.54 A @ 12.98 V, the bar integrates with standard auxiliary harnesses on 12 V and 24 V vehicles.

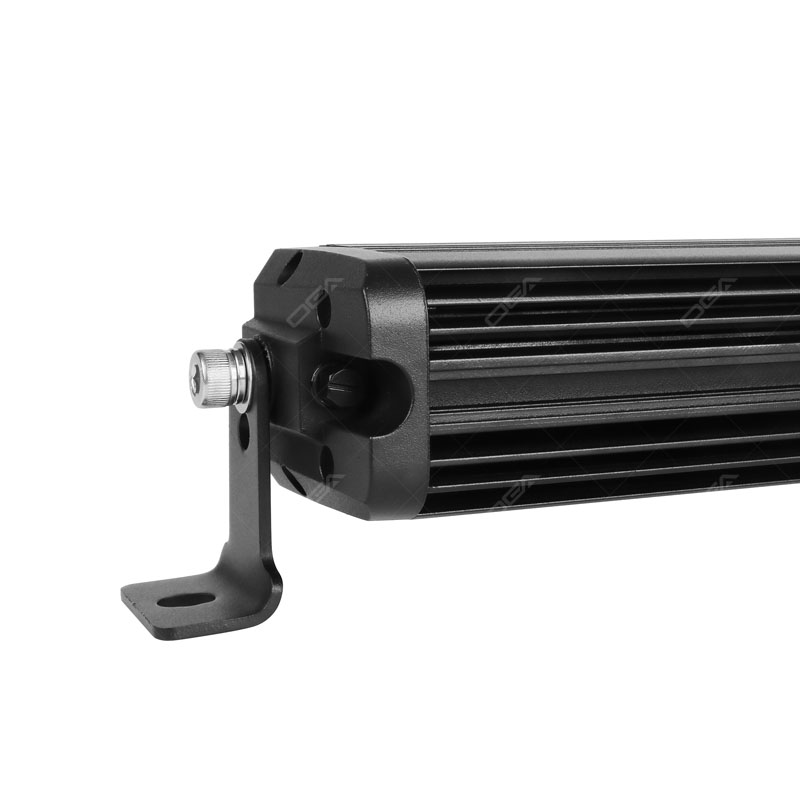

IP67 SEALING & 2-YEAR COVERAGE

Rated IP67 for water and dust resistance with a robust aluminum housing for thermal stability. Supported by a 2-year warranty for wholesale and commercial use.

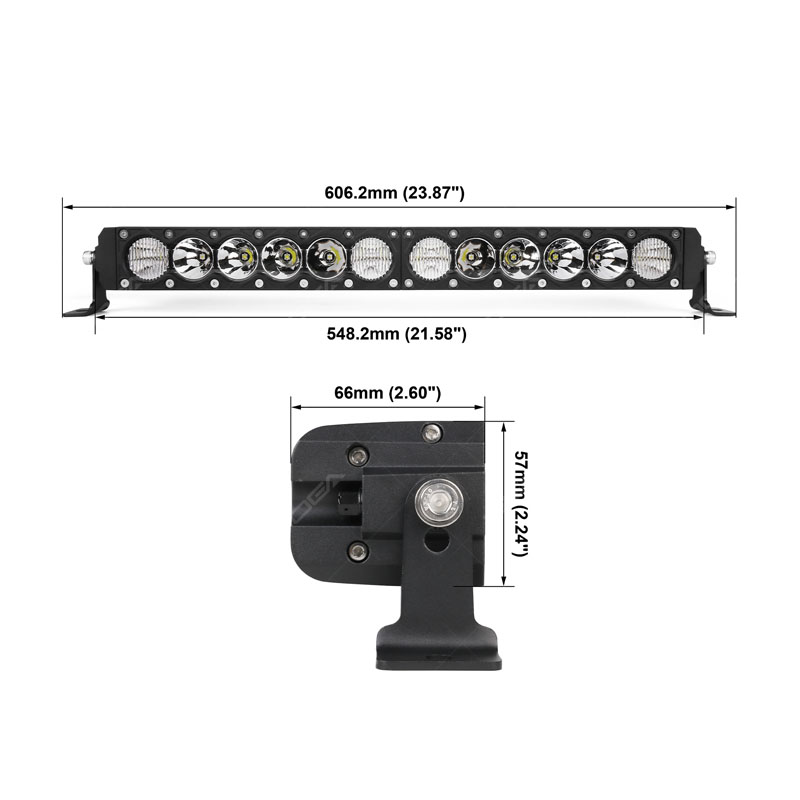

I Product Size
