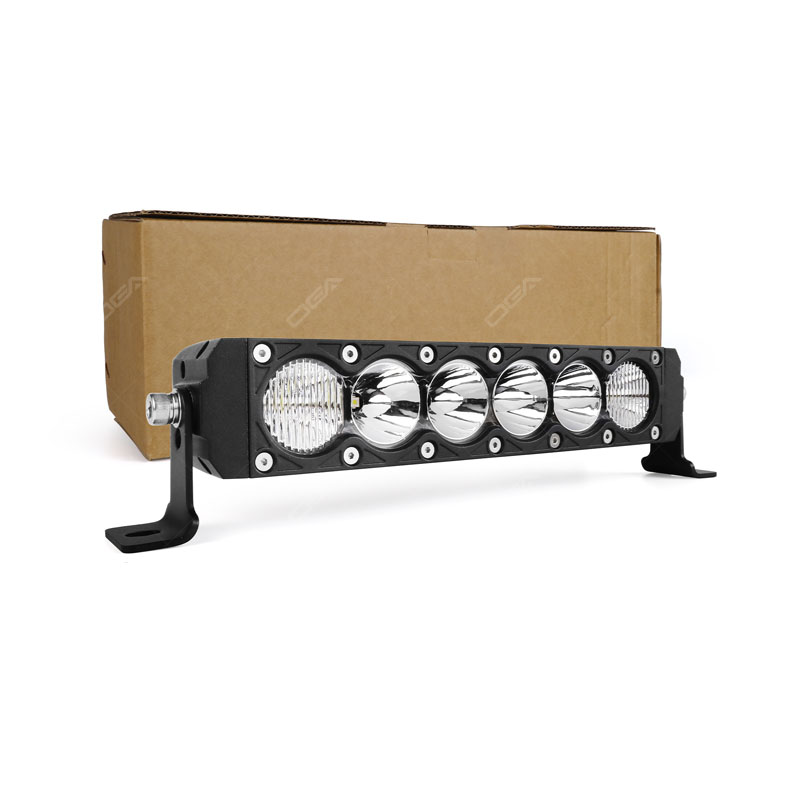

11 inch Amber Backlit Combo Beam LED Light Bar

SKU# 4PA8D0

Usage: Combo beam Warranty: 2 years Lumens: 7953LM Color temp: 7200K

◆ Optimized optics with high-power Luminus LEDs

◆ Amber backlit signature with 22 × 0.5 W LEDs

◆ Combo beam, verified 1 lux @ 377 m

◆ IP67-sealed aluminum housing

◆ Measured 7,953 lm ±10%

Wholesale request

Details PDF download-1

11 inch led bar distributor

I Product specifications

PRODUCT NAME	OGA-63BLC-11"-CO	COLOR TEMP.	7200K ±500K
LED SOURCE	4 × 24W Luminus + 2 × 20W Luminus (main) 22 × 0.5W (amber backlit)	ACTUAL LUMENS	7953LM ±10%
POWER OUTPUT	136W ±10%	VOLTAGE COMPATIBILITY	10–30V DC, 8.9A @ 12.97V

I Features

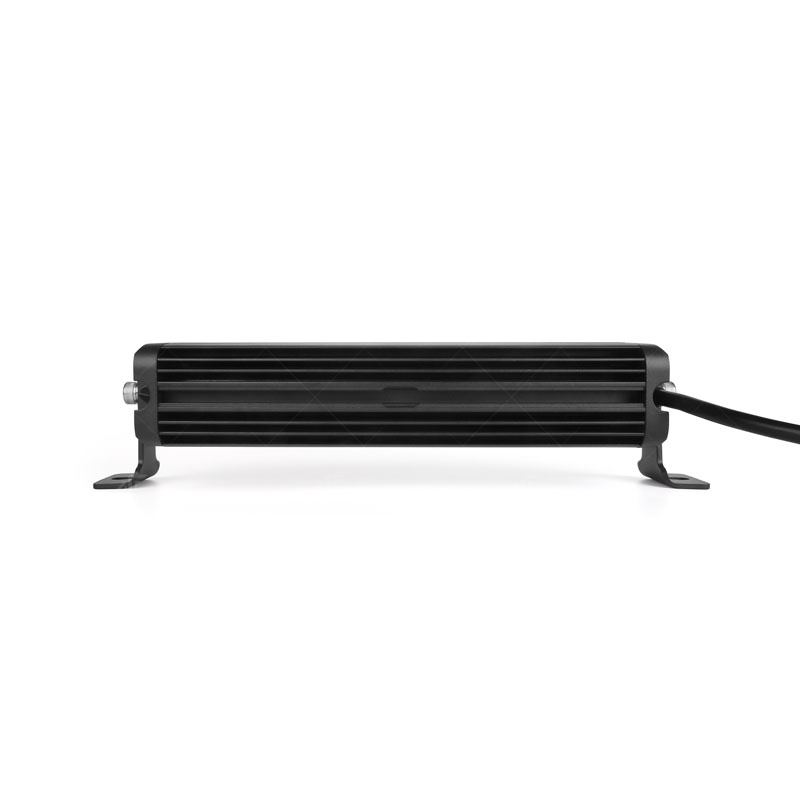

The OGA 63BLC 11" single row LED light bar delivers strong forward lighting in a compact 11.59 × 2.60 × 2.24 in body. It uses high-power Luminus LEDs with an amber backlit signature and a combo beam optimized for distance and width. Built for 10–30 V DC systems and sealed to IP67, it is a reliable choice for off-road, utility, and fleet applications.

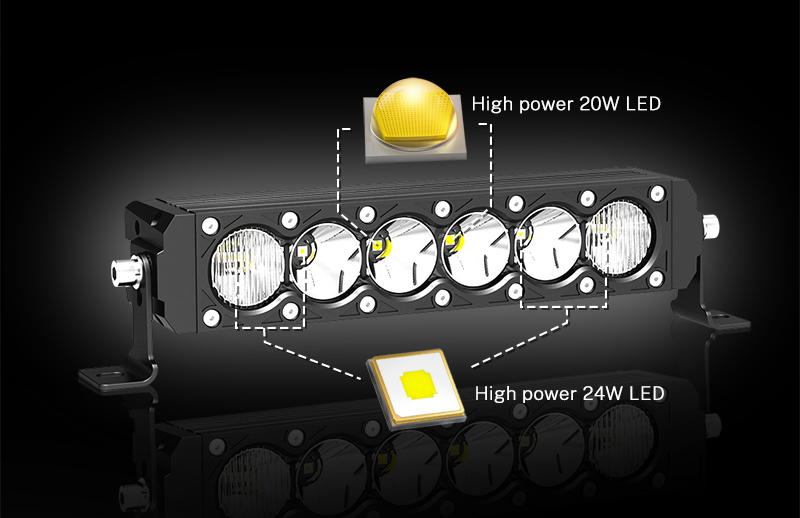

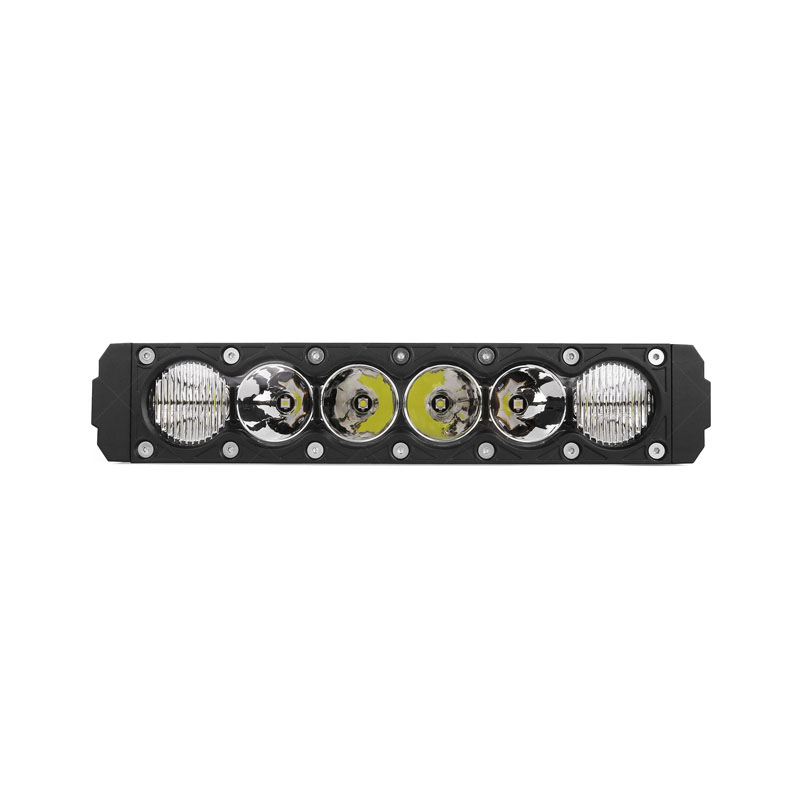

HIGH-POWER LUMINUS LED ARRAY

The main light combines 4 × 24 W and 2 × 20 W Luminus LEDs for a rated 136 W ± 10% draw and measured output of 7,953 lm ± 10%. This configuration produces a concentrated hotspot with ample near-field fill for confident night driving.

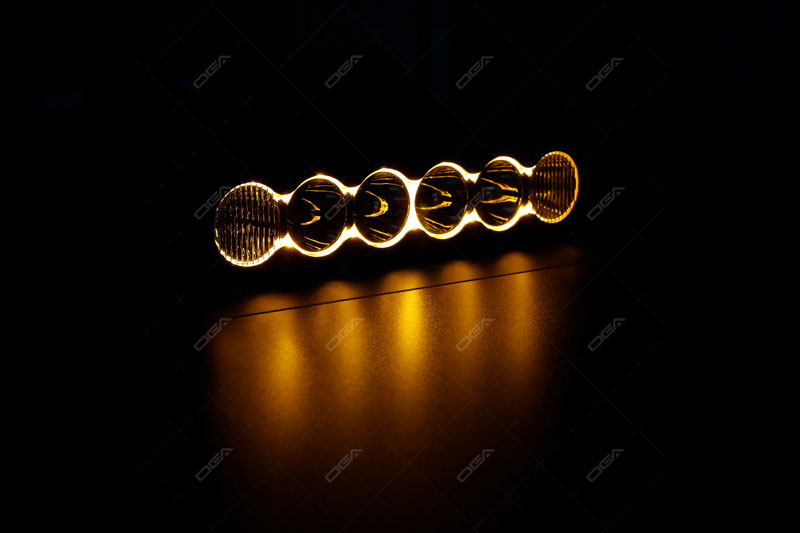

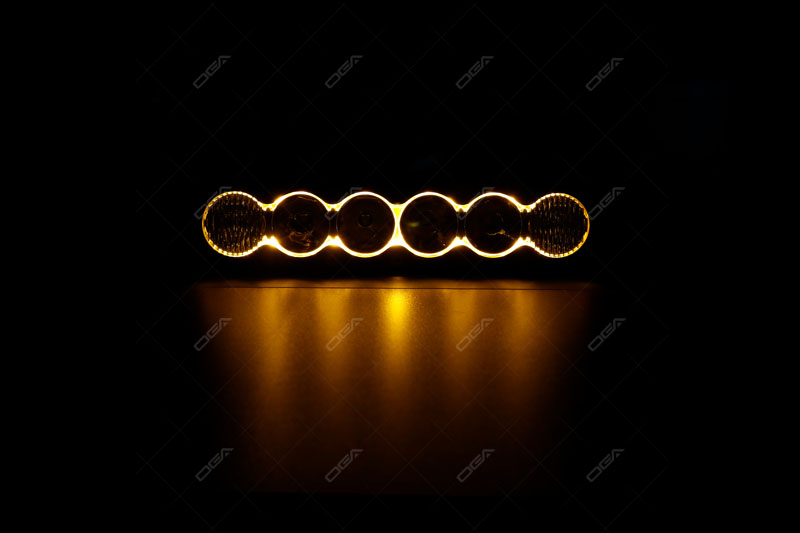

AMBER BACKLIT SIGNATURE

A dedicated backlit circuit of 22 × 0.5 W amber LEDs creates a clean signature when the main beam is off. Use it for a premium visual identity at staging areas, campsites, or meet-ups without additional auxiliary modules.

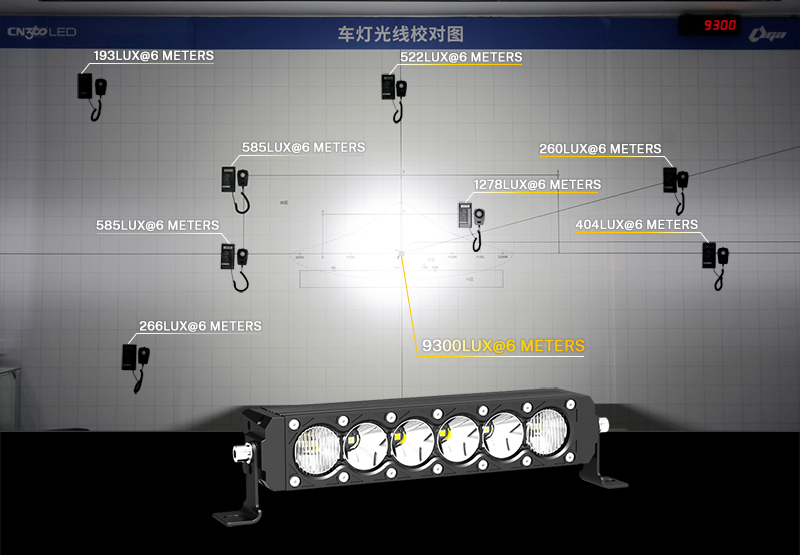

COMBO BEAM PERFORMANCE

The combo optic blends long-range spot intensity with controlled spread, verified at 1 lux @ 377 m. The main light color is 7,200 K ± 500 K, giving a crisp, high-contrast appearance for signs, markers, and lane edges.

WIDE VOLTAGE COMPATIBILITY

Designed for 10–30 V DC platforms, the bar draws about 8.9 A @ 12.97 V, integrating smoothly with common 12 V and 24 V electrical systems on passenger vehicles and commercial equipment.

IP67 DURABILITY & WARRANTY

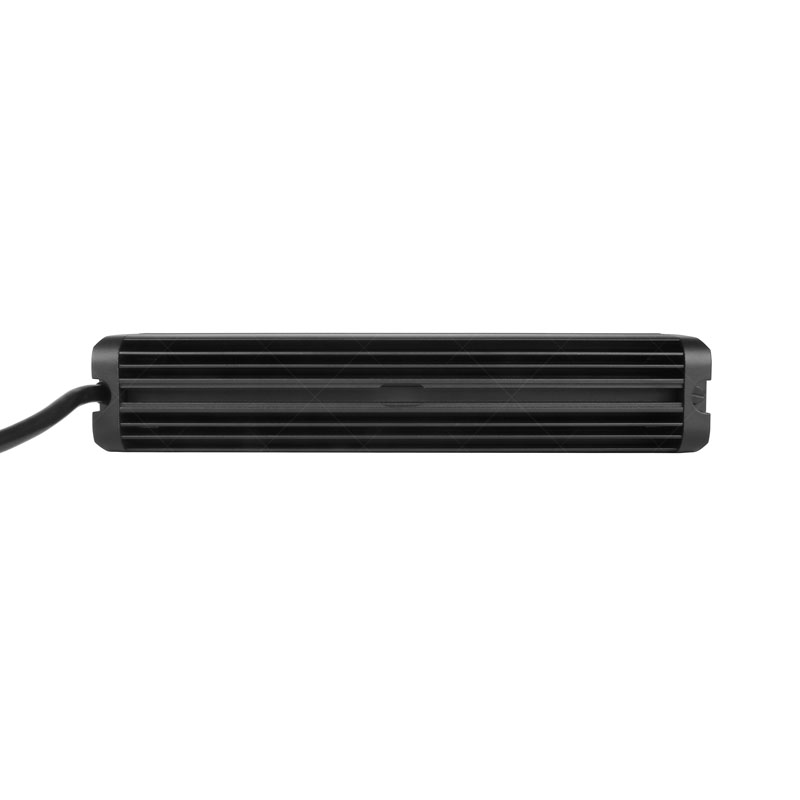

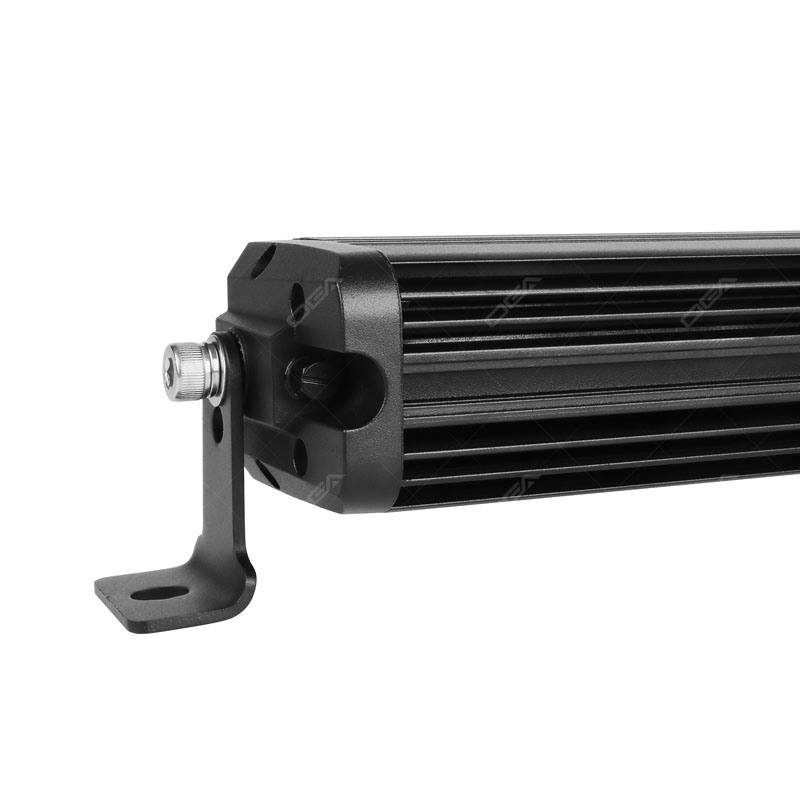

Sealed to IP67 for dust and water protection, with an aluminum housing that helps stabilize output during extended operation. Backed by a 2-year warranty for dependable service life.

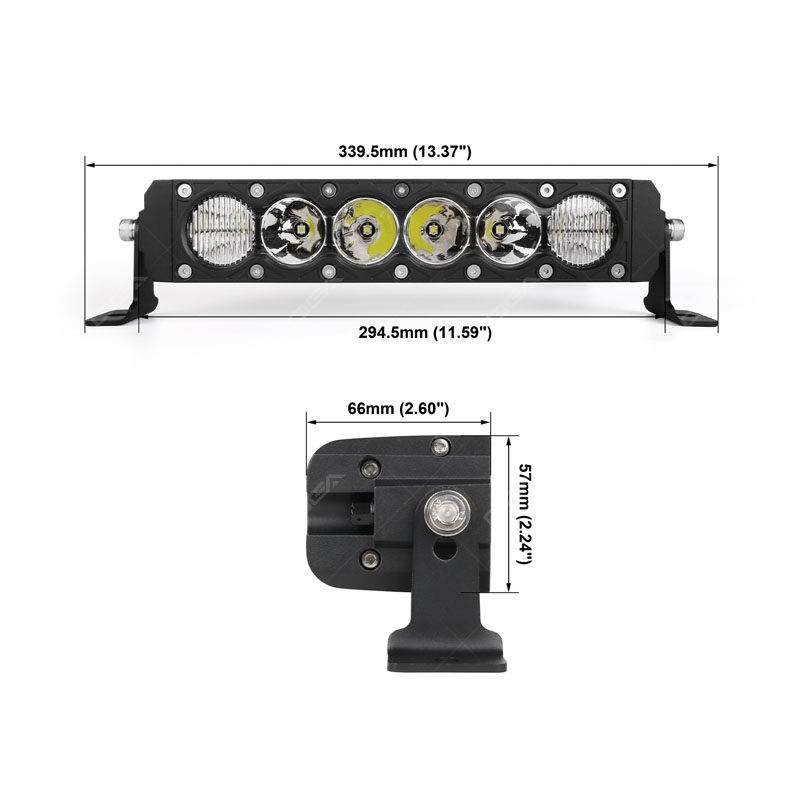

I Product Size
