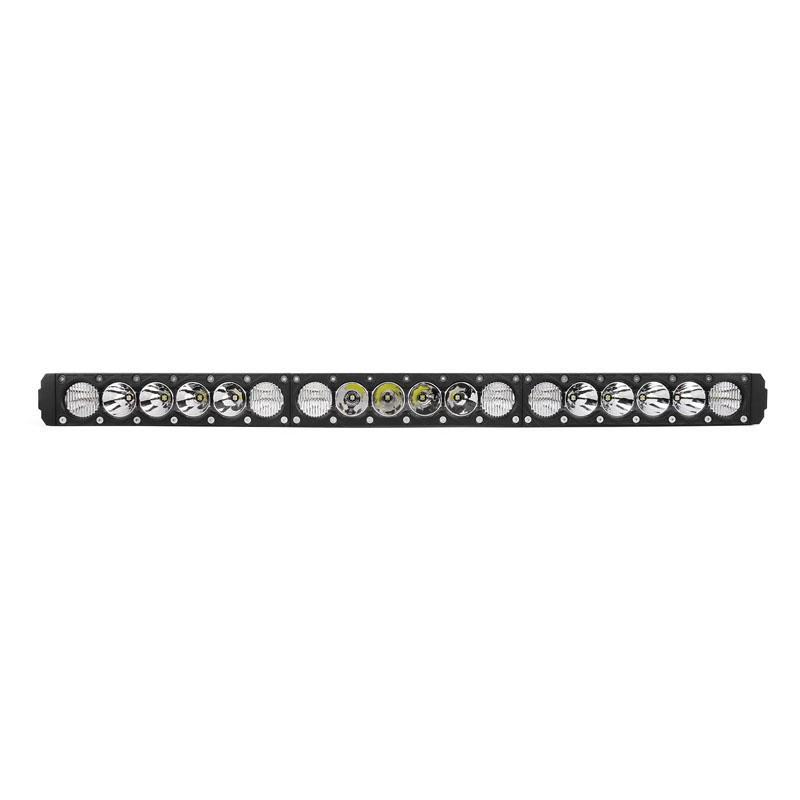

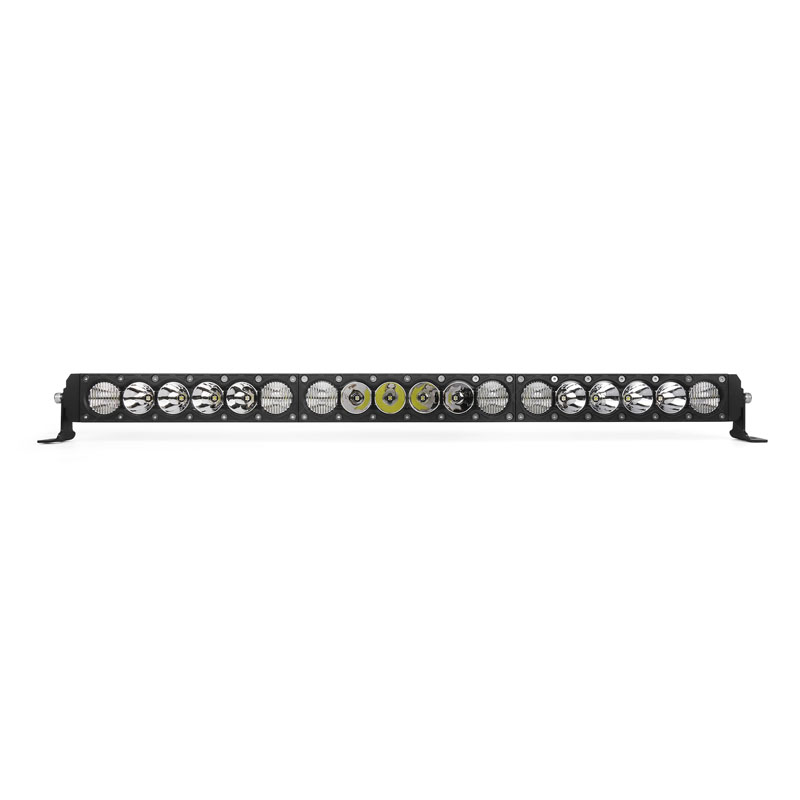

31 inch Amber Backlit Combo Beam LED Light Bar

SKU# 4PC8D0

Usage: Combo beam Warranty: 2 years Color temp: 7200K Lumens: 23471LM

◆ High-density Luminus LED array, maximum output

◆ Amber backlit signature with 66 × 0.5 W LEDs

◆ Long-range combo beam, 1 lux @ 717 m

◆ IP67-sealed aluminum housing

◆ Measured 23,471 lm ±10%

Wholesale request

Details PDF download-1

11 inch led bar distributor

I Product specifications

PRODUCT NAME	OGA-63BLC-31"-CO	COLOR TEMP.	7200K ±500K
LED SOURCE	12 × 24W Luminus + 6 × 20W Luminus (main) 66 × 0.5W (amber backlit)	ACTUAL LUMENS	23471LM ±10%
POWER OUTPUT	408W ±10%	VOLTAGE COMPATIBILITY	10–30V DC, 23.8A @ 12.9V

I Features

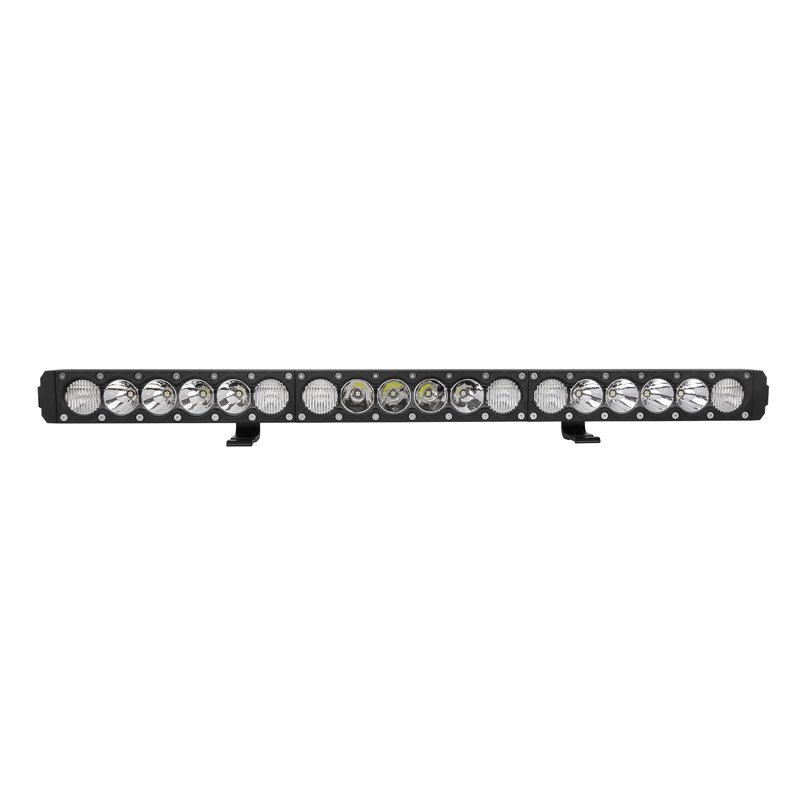

The OGA 63BLC 31" single row LED light bar is the range leader, sized at 31.57 × 2.60 × 2.24 in for maximum span and illumination. A dense Luminus array, amber backlit signature, and a tuned combo beam deliver extreme throw with practical width for trucks, vans, and roof-rack installs.

HIGH-DENSITY LUMINUS ARRAY

The main system combines 12 × 24 W and 6 × 20 W Luminus LEDs to reach a rated 408 W ± 10% and measured 23,471 lm ± 10%. Optical geometry concentrates intensity downrange while preserving shoulder visibility.

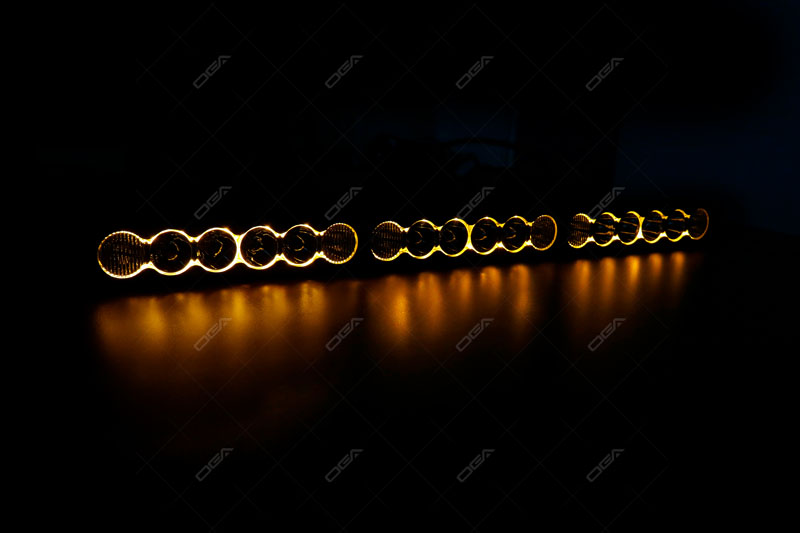

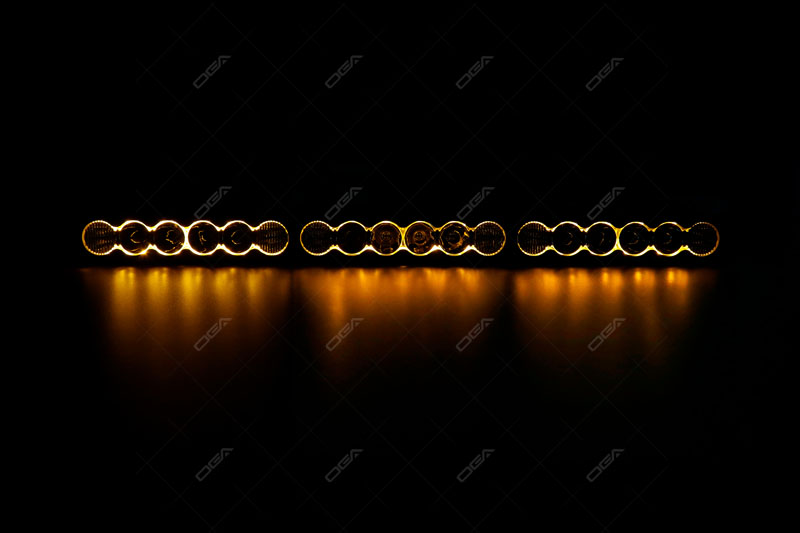

FULL-LENGTH AMBER BACKLIT

An even amber glow from 66 × 0.5 W LEDs runs across the bar, creating a premium signature at campsites, staging zones, and events when the main beam is off.

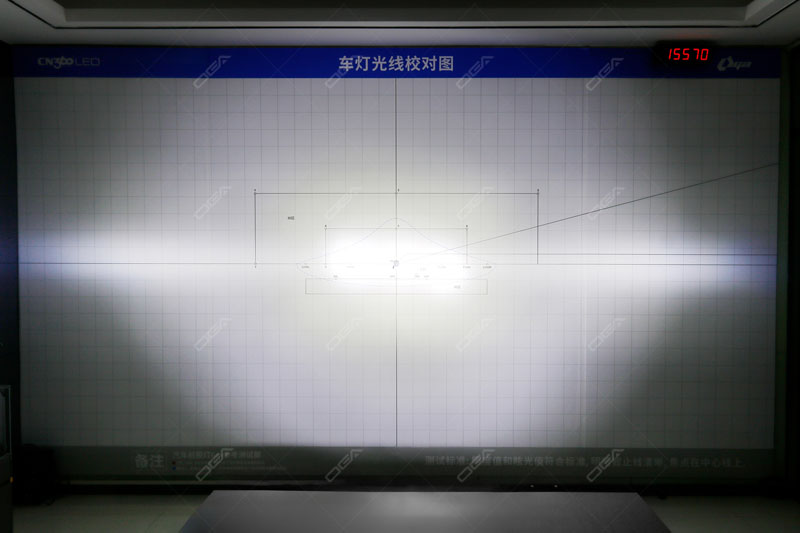

COMBO OPTICS FOR EXTREME THROW

The combo beam delivers long straight-line visibility with controlled spread, verified at 1 lux @ 717 m. Main beam color is 7,200 K ± 500 K for high-contrast recognition of road features.

WIDE OPERATING VOLTAGE

Engineered for 10–30 V DC systems, drawing approximately 23.8 A @ 12.9 V. The bar integrates with common auxiliary wiring on both 12 V and 24 V platforms.

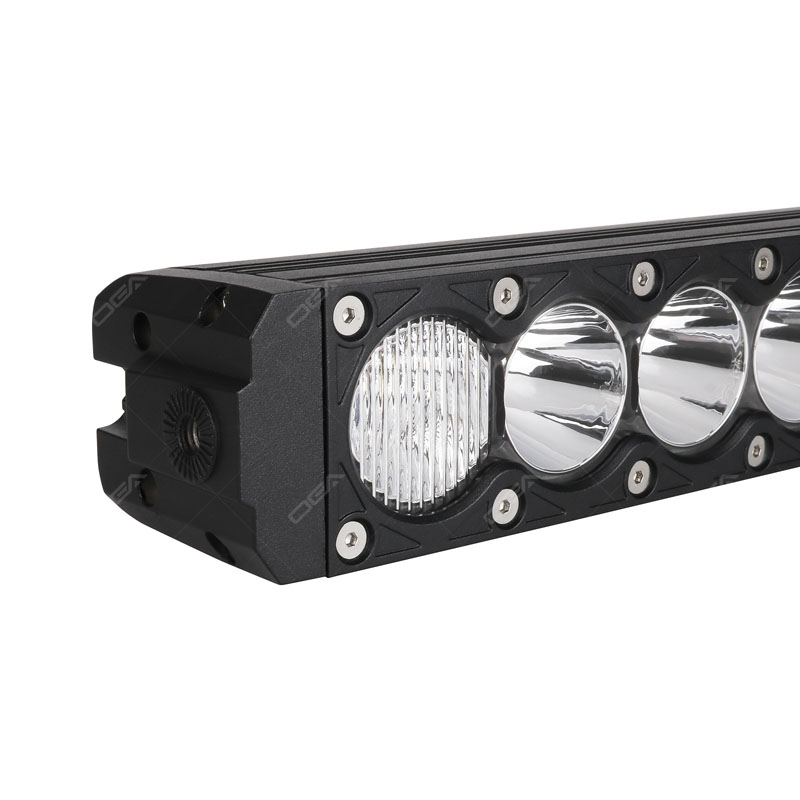

IP67 RUGGEDNESS & WARRANTY

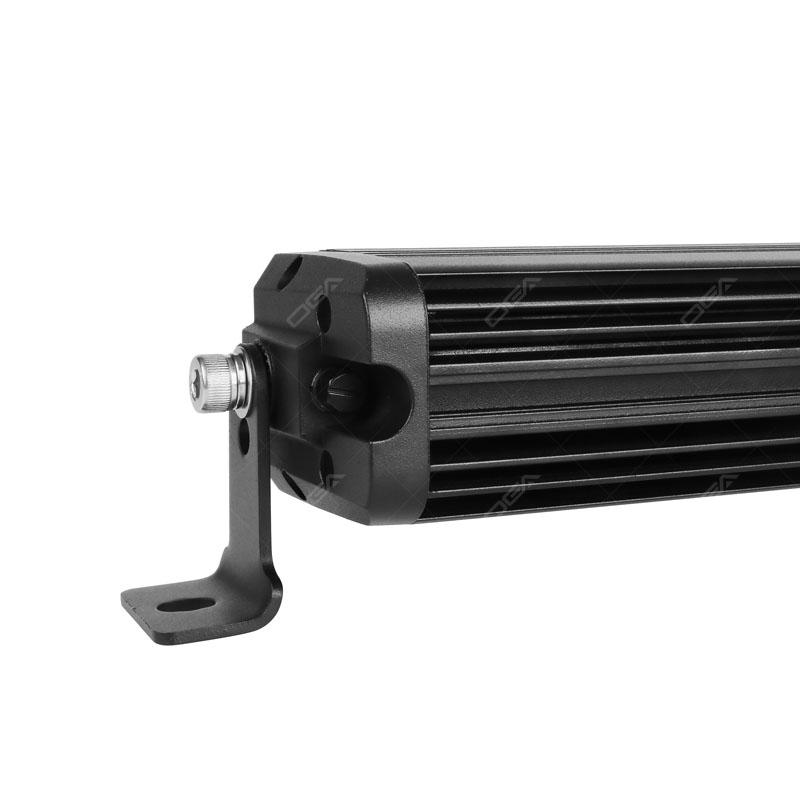

Sealed to IP67 for dust and water protection and built on an aluminum housing for thermal stability under prolonged use. Supported by a 2-year warranty for dependable service life.

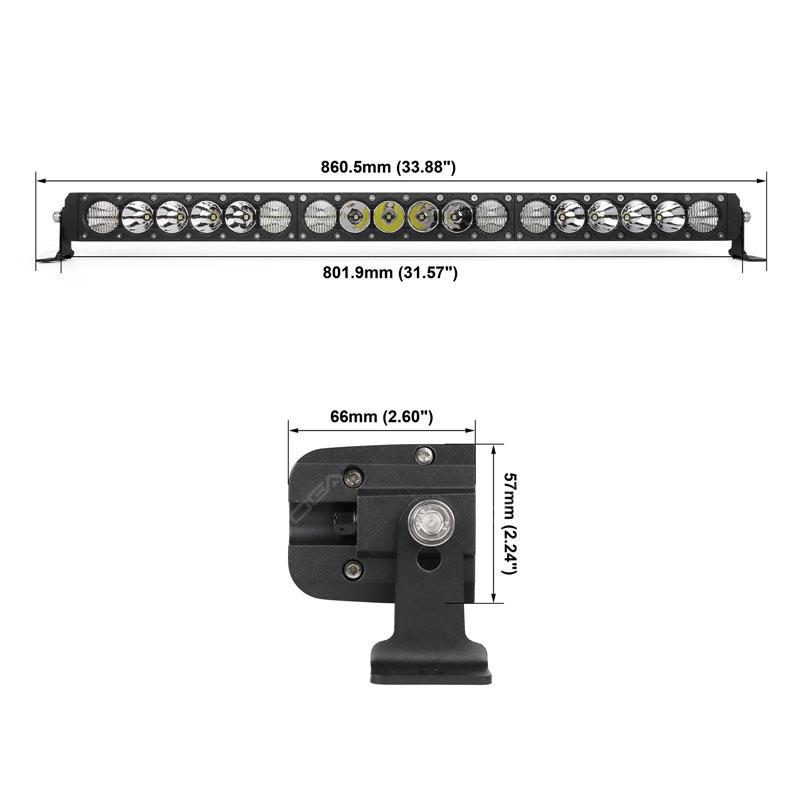

I Product Size
