H1 Series light pod or off road light universal dual output wiring harness

SKU# 840002

Output: 2 outputs Wire length: 3 meters Connector: Deutsch DT type Warranty: 1 year

◆ Universal wiring harness to fit with most OGA work lights and light bars.

◆ It can power 2 lights together.

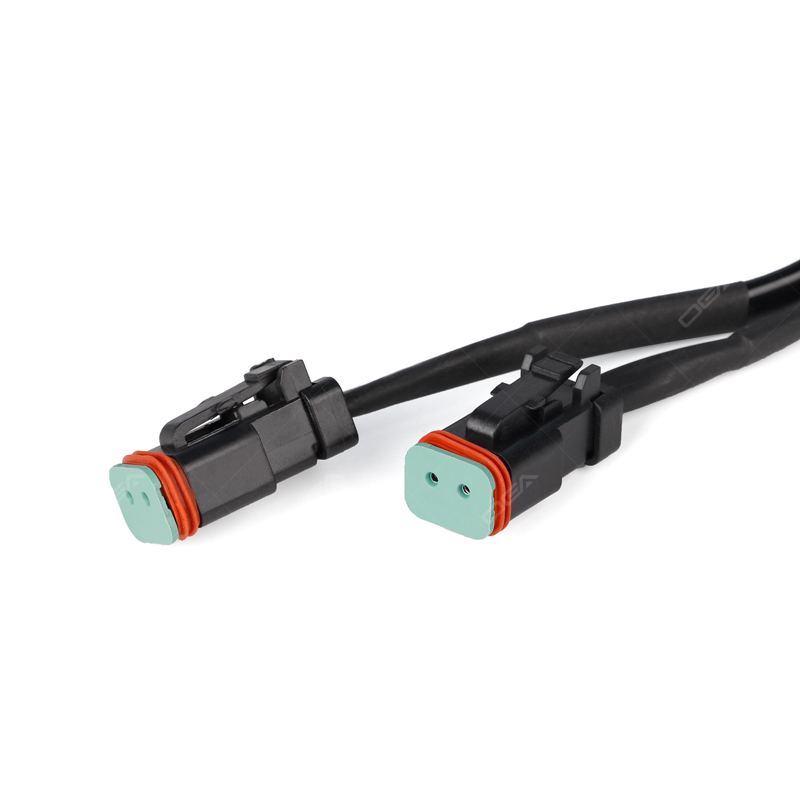

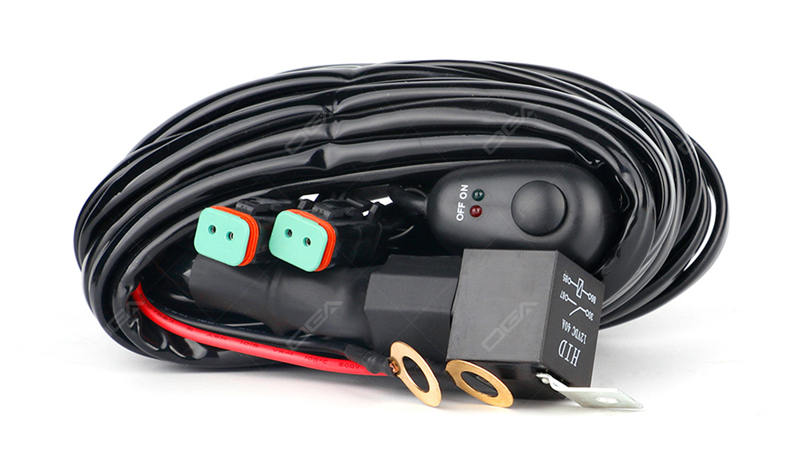

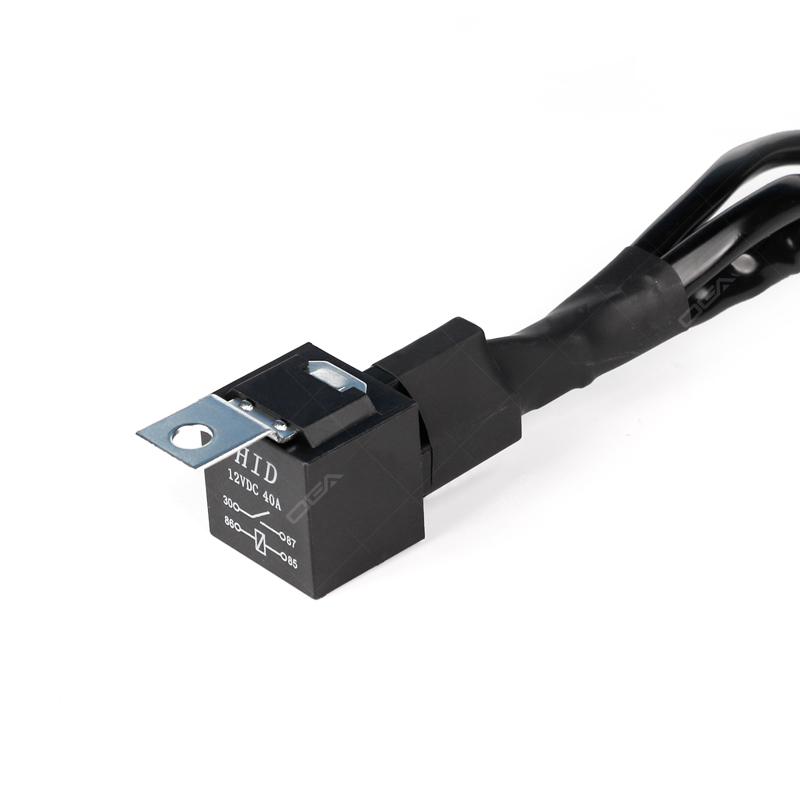

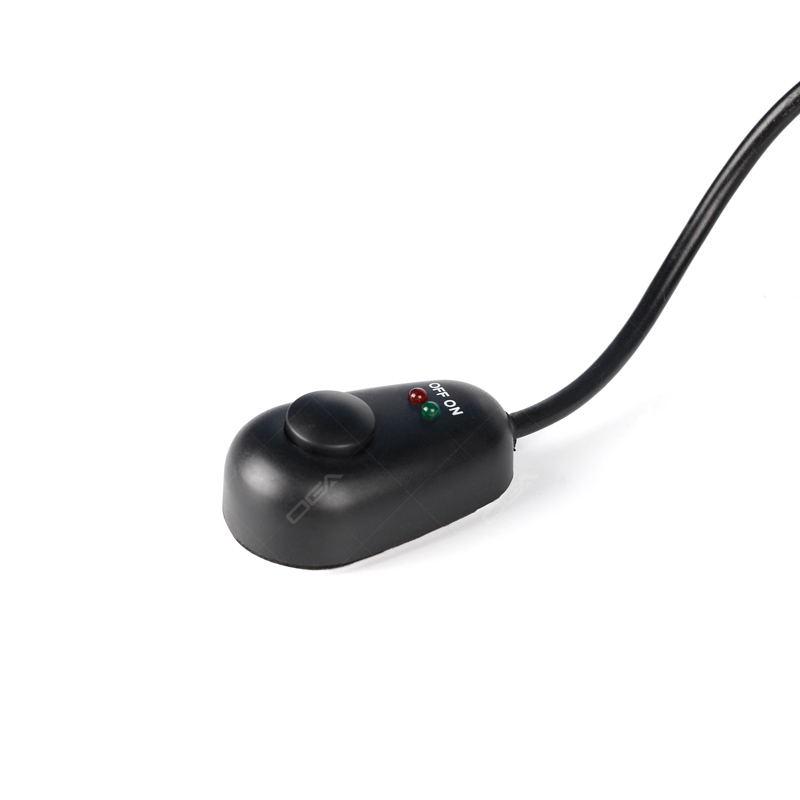

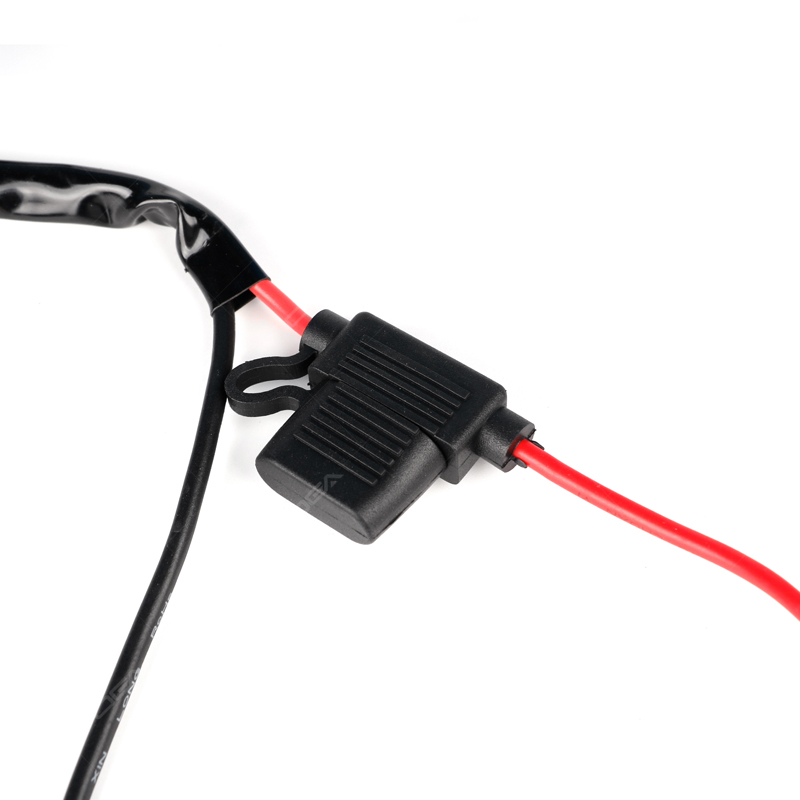

◆ The wire harness includes two 2-Pin DT connectors, 1 fuse, 1 relay and 1 switch.

◆ One-year warranty

Wholesale request

Details

OGA Automotive Lighting accessories Supplier

I Product specifications

PRODUCT NAME	OGA-H1-2 OUTPUT	DT CONNECTOR	2 OUTPUT
POWER OUTPUT	≤60W*2	WIRE SIZE	16AWG
WIRE SIZE	3.0M	WARRANTY	1 YEAR
USAGE	AUXILIARY LIGHT WIRING HARNESS	VOLTAGE COMPATIBILITY	9-36V DC

I Features

About H1 series auxiliary light wiring harness

1. Universal fitment

The universal H1 series auxiliary light harness is compatible with led work lights and led bars that use 12V power source.

2. Plug and play DT connector

Simple connection equipped with DT connector, 1 output and 2 outputs are optional. Stable connection and easy installation.

I Product Size
