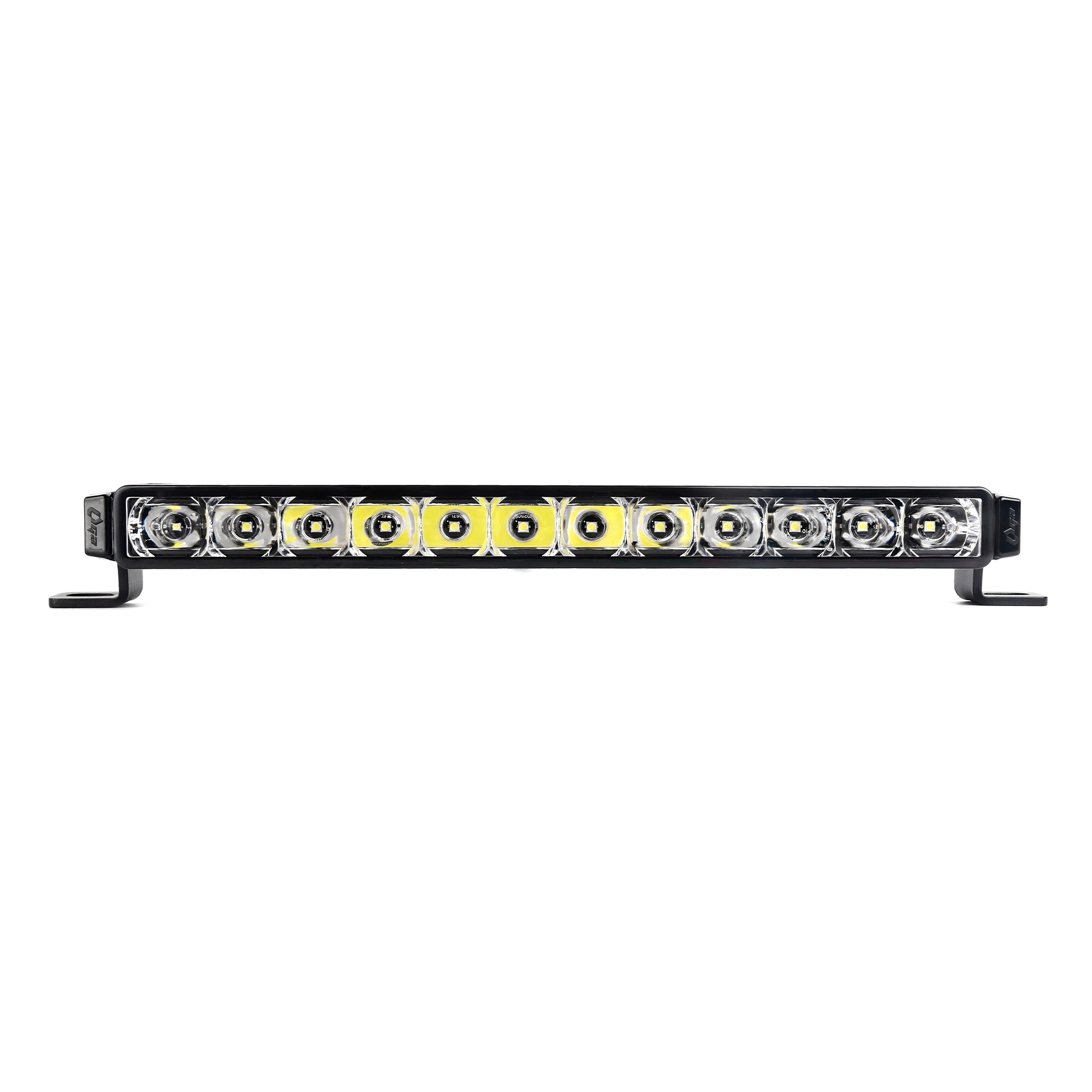

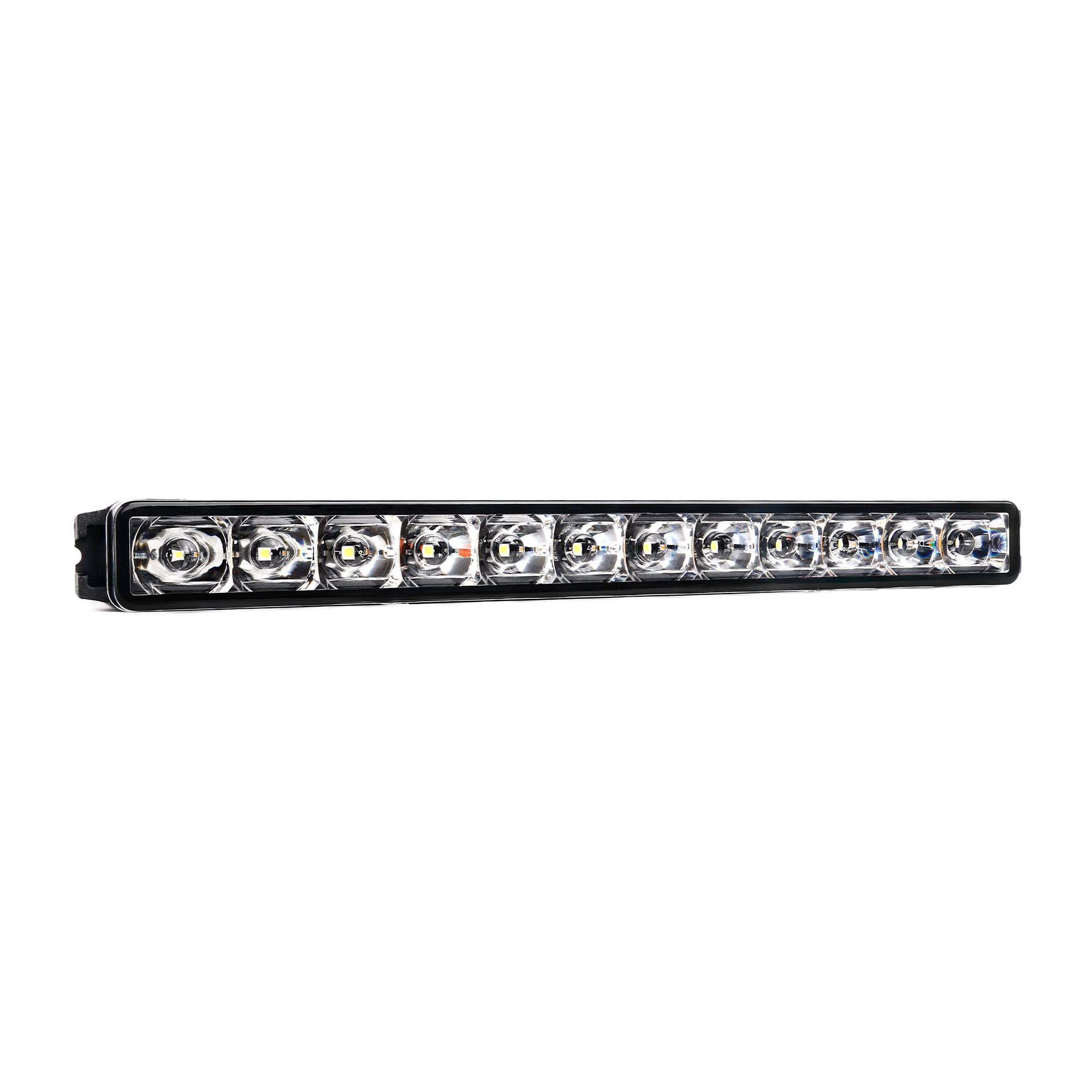

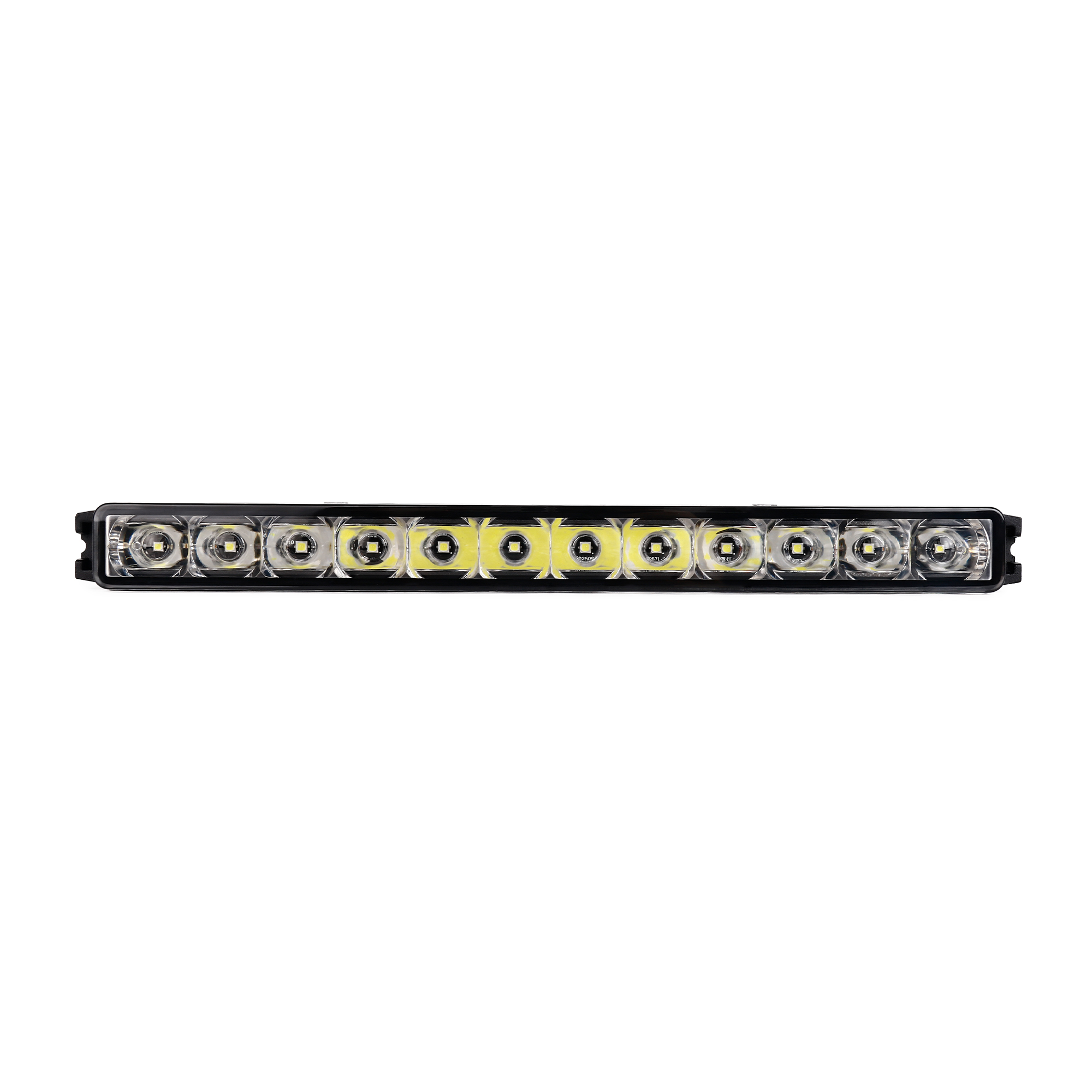

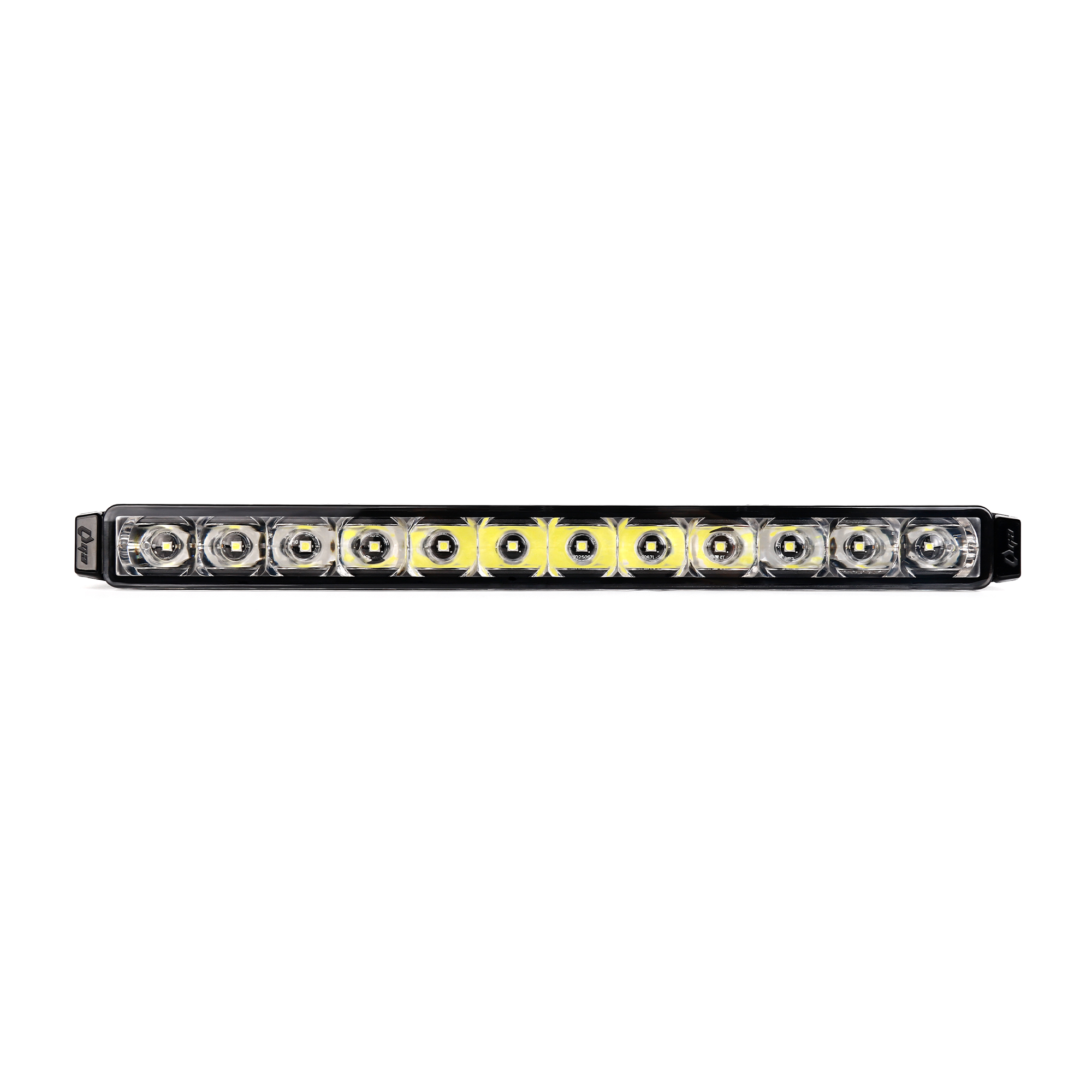

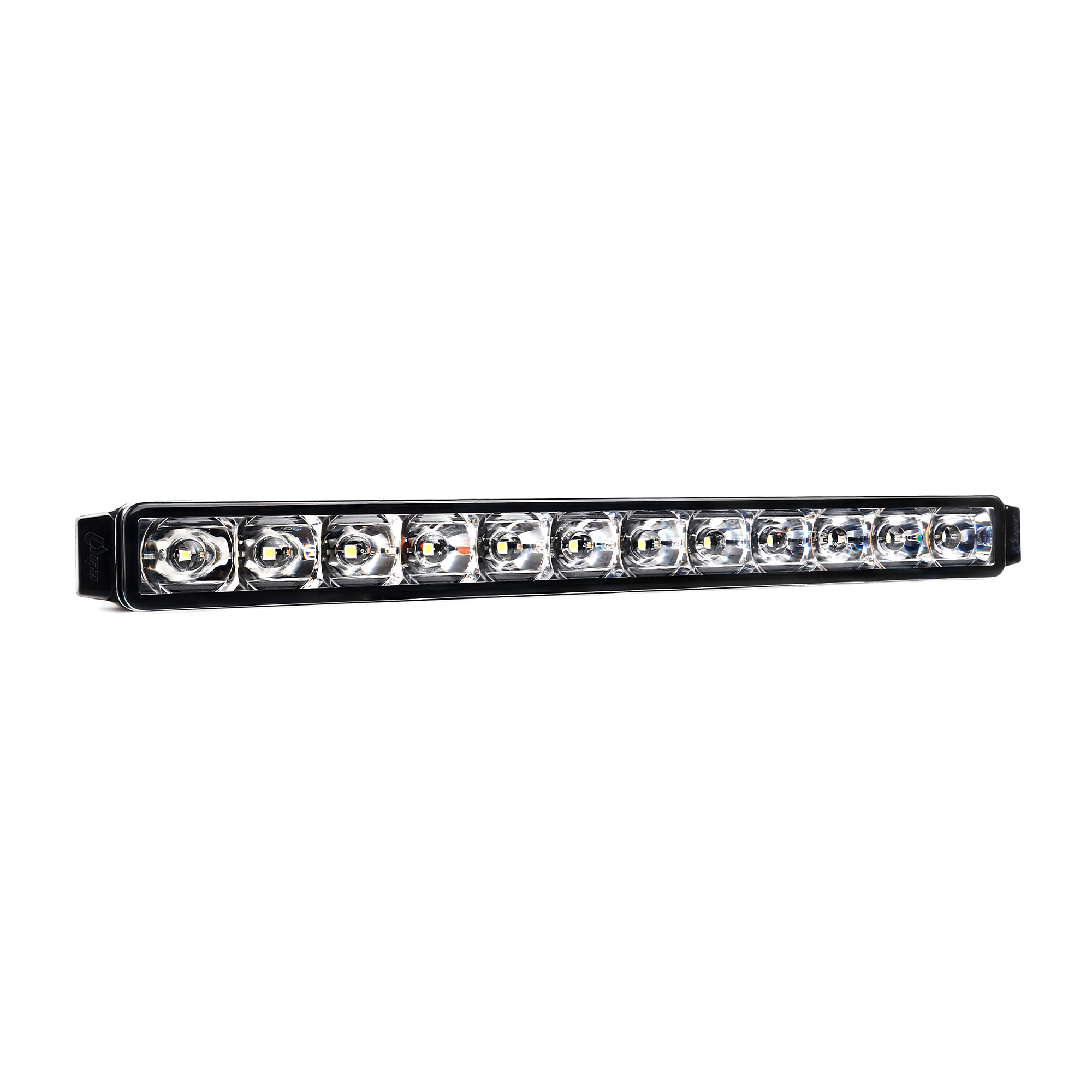

GL10 Series 10 Inch ECE R10 Spot Beam LED Light Bar

SKU# 4RA310

Warranty: 2 years Color Temp: 5500K Lumens: 8500LM Usage: Spot Beam

◆ ECE R10 EMC Approved

◆ Dual Beam Ultra Slim LED Light Bar

◆ Intelligent Temperature Control

◆ Spot Beam Long Range Illumination

◆ Linkable LED Light Bar Design

◆ IP67 Waterproof Protection

Wholesale request

Details

GL10 Series Slim Linkable Light Bar

I Product specifications

PRODUCT NAME	GL10 Series 10 Inch Spot Beam LED Light Bar	CATEGORY	Light Bars
SKU#	4RA310	LED SOURCE	12 × 9W LED main light 9 × 1.5W LED backlit
POWER OUTPUT	108W ± 10%	COLOR TEMP.	5500K ± 500K
THEORETICAL LUMENS	8500LM ± 10%	ACTUAL LUMENS	5074LM ± 10%
BEAM PATTERN	Spot Beam	LUX DATA	1LUX @ 250M
VOLTAGE COMPATIBILITY	9–48V DC 4.21A @ 13.5V	INGRESS PROTECTION	IP67
CERTIFICATION	ECE R10 EMC Approved	WARRANTY	2 Years

I Features

The GL10 Series 10 Inch Spot Beam LED Light Bar is an ultra slim auxiliary light designed for customers who need focused forward projection in a compact single row format. It uses 12 × 9W LEDs for the main light and 9 × 1.5W LEDs for the backlit section, delivering 108W ± 10% power output, 5074LM ± 10% actual lumens, and 1LUX @ 250M performance. With 5500K ± 500K color temperature, 9–48V DC compatibility, IP67 protection, and ECE R10 EMC approval, this model supports focused auxiliary lighting for off road vehicles, pickup trucks, SUVs, utility vehicles, vehicle modification projects, and professional B2B lighting supply.

LINKABLE LED LIGHT BAR DESIGN

The GL10 Series uses a linkable LED light bar structure, allowing multiple units to be connected according to different vehicle widths, mounting spaces, and lighting layout needs. Compared with a traditional fixed length light bar, this design gives installers more flexibility when creating grille, bumper, roof rack, or customized auxiliary lighting setups. It also makes the series easier to adapt across different vehicle applications while keeping a consistent slim and modular appearance. This linkable design also makes maintenance more convenient. If one section is damaged, users can replace the affected unit instead of replacing the entire light bar assembly. For distributors, installers, and professional users, this helps reduce long term replacement cost and improves service efficiency. It gives the product a more practical value in real vehicle use, especially for customers who care about repairability, modular supply, and after sales convenience.

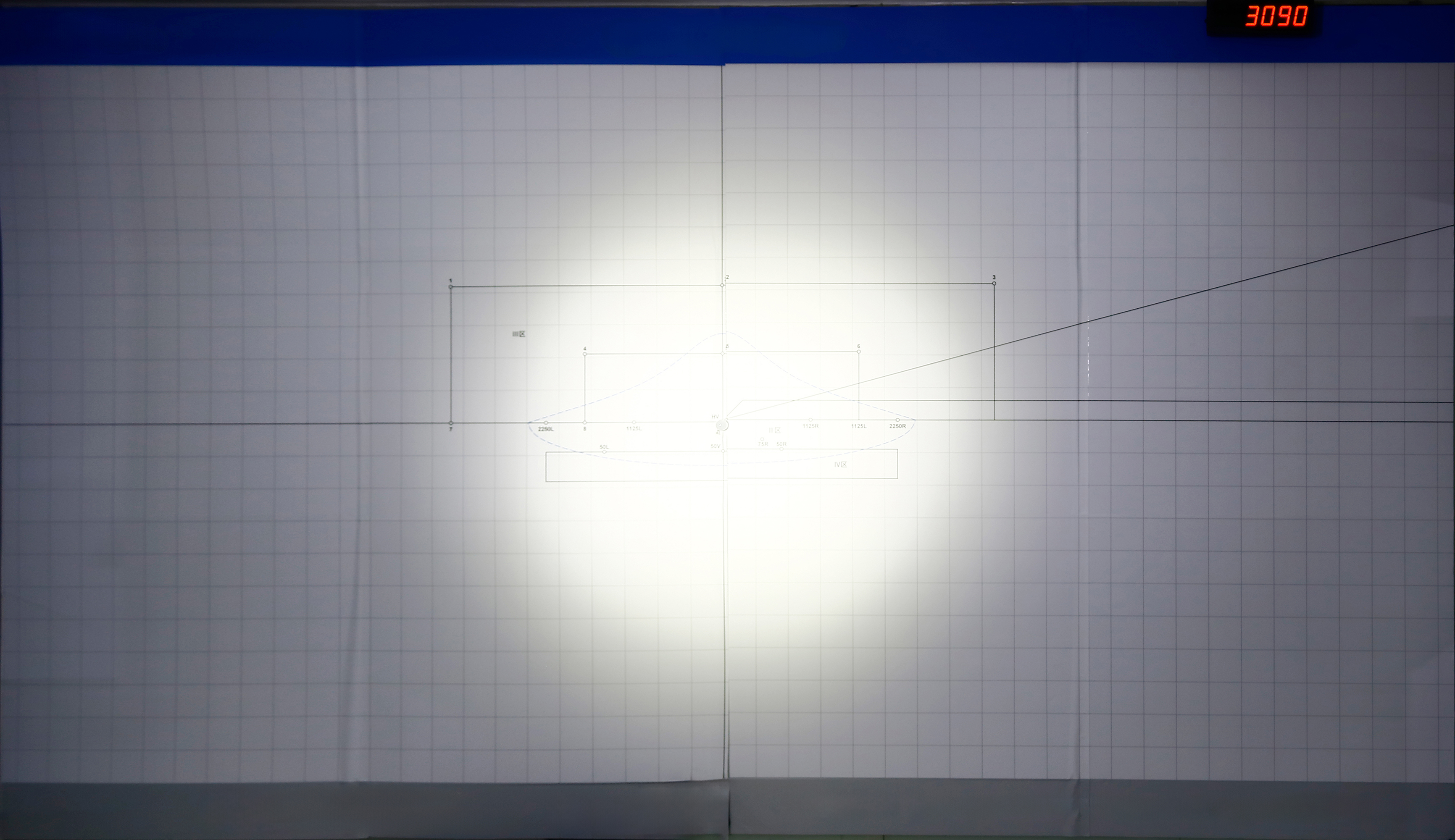

BEAM PATTERN OPTIONS

This model is the spot beam version of the GL10 Series 10 inch light bar. The spot beam pattern is designed for focused forward projection, making it suitable for users who need longer distance visibility from an ultra slim auxiliary light. With 1LUX @ 250M performance, it provides stronger forward reach than a general compact beam setup. This beam option is useful for open route visibility, off road driving, and paired front installations where a concentrated lighting effect is preferred.

MODULAR AND ULTRA SLIM LIGHT BAR DESIGN

The GL10 Series is built around a modular and ultra slim light bar design. The 10 inch version gives the vehicle a stronger installed appearance while keeping the same low profile single row design language. The slim body helps reduce visual bulk after installation, which is important for modern vehicle builds that need auxiliary lighting without an oversized lamp appearance. The modular design language also allows customers to match different sizes, beam patterns, and output versions within the same series, giving distributors and installers more flexibility when recommending lighting solutions for different vehicles.

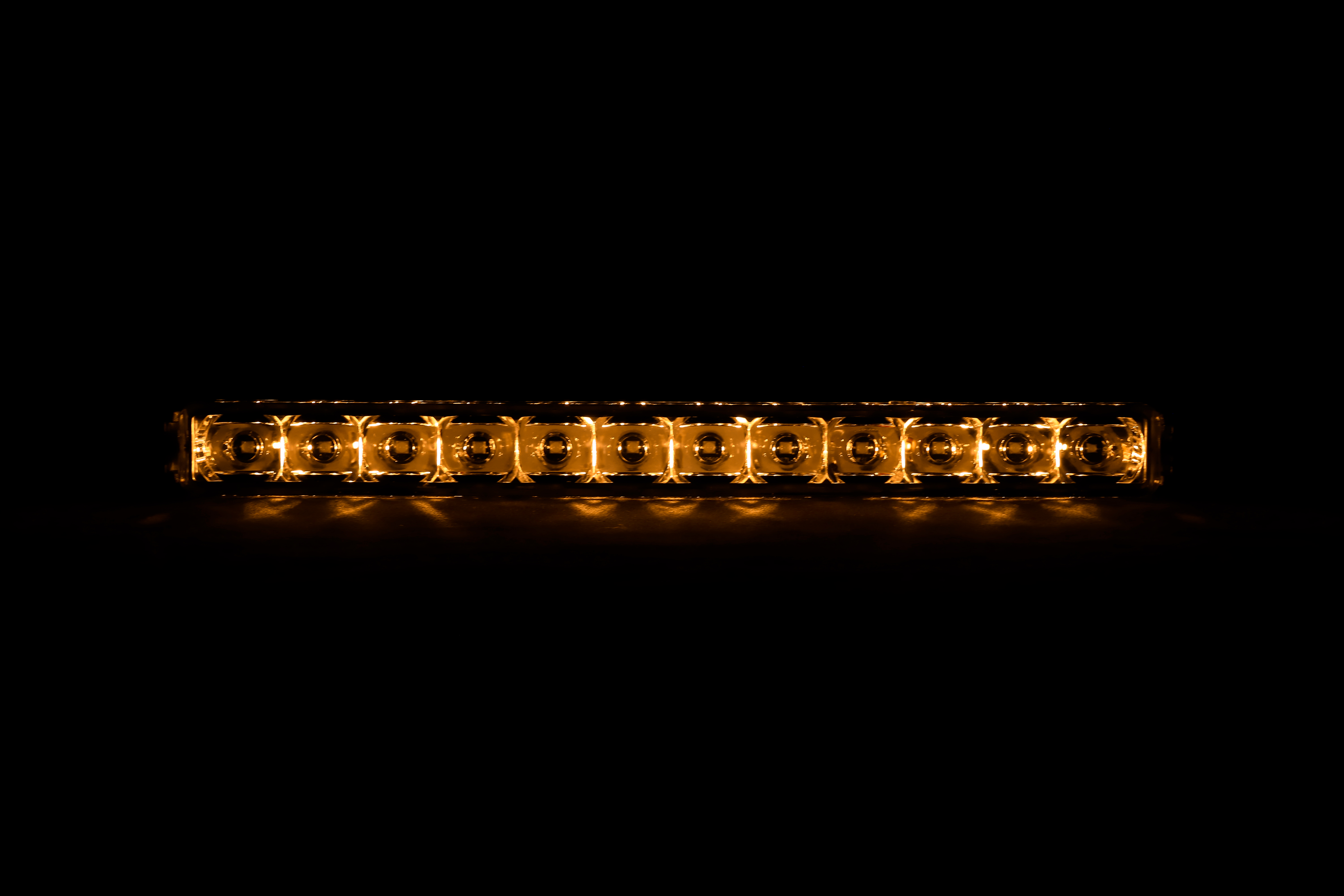

INTELLIGENT TEMPERATURE CONTROL AND BACKLIGHT EFFECT DISPLAY

The product combines intelligent temperature control with a backlight effect display. Intelligent temperature control helps support stable operation when the lamp is used for longer periods, especially in off road driving, night work, recovery tasks, and outdoor routes. Better thermal management helps reduce heat related stress on LEDs and driver components, supporting more dependable performance over time. The backlight display gives the light bar a softer visual identity when the main beam is not required, making the product more attractive for vehicle styling, showroom presentation, product photography, and modification projects.

Backlit design and intelligent tempreture control

WATERPROOF RATING

With IP67 protection, the GL10 Series LED light bar is designed for exterior vehicle use where rain, splash, dust, mud, road spray, and changing weather conditions are common. Auxiliary lights are usually mounted in exposed positions, so waterproof and dustproof performance directly affects long term reliability. The sealed structure helps protect the internal LED source, optical parts, driver components, and backlit section from environmental damage. This makes the product suitable for off road vehicles, pickup trucks, SUVs, utility vehicles, and other applications where dependable lighting is required.

CORE PARTS BREAKDOWN

The core structure includes a silicone cover, one piece die cast aluminum alloy housing, 12 × 9W LEDs for the main light, 9 × 1.5W LEDs for the backlit section, secondary injection molded projector optic, and built in smart temperature controlled LED driver control board. These components work together to support the slim structure, lighting output, sealing performance, heat management, and stable electrical operation of the GL10 Series light bar. The ECE R10 EMC approved design also adds value for automotive lighting applications where electrical compatibility is important.

INSTALLATION POSITIONS

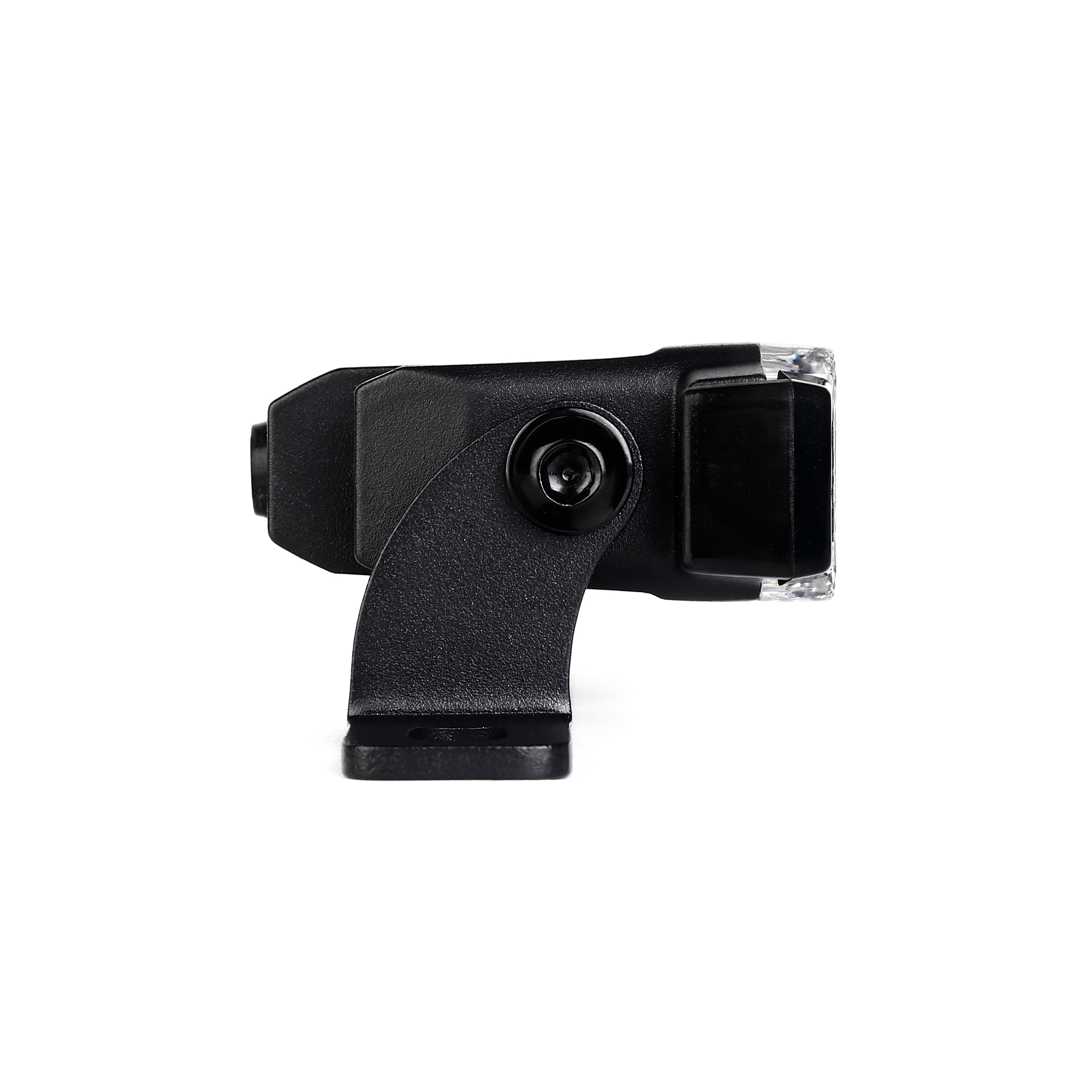

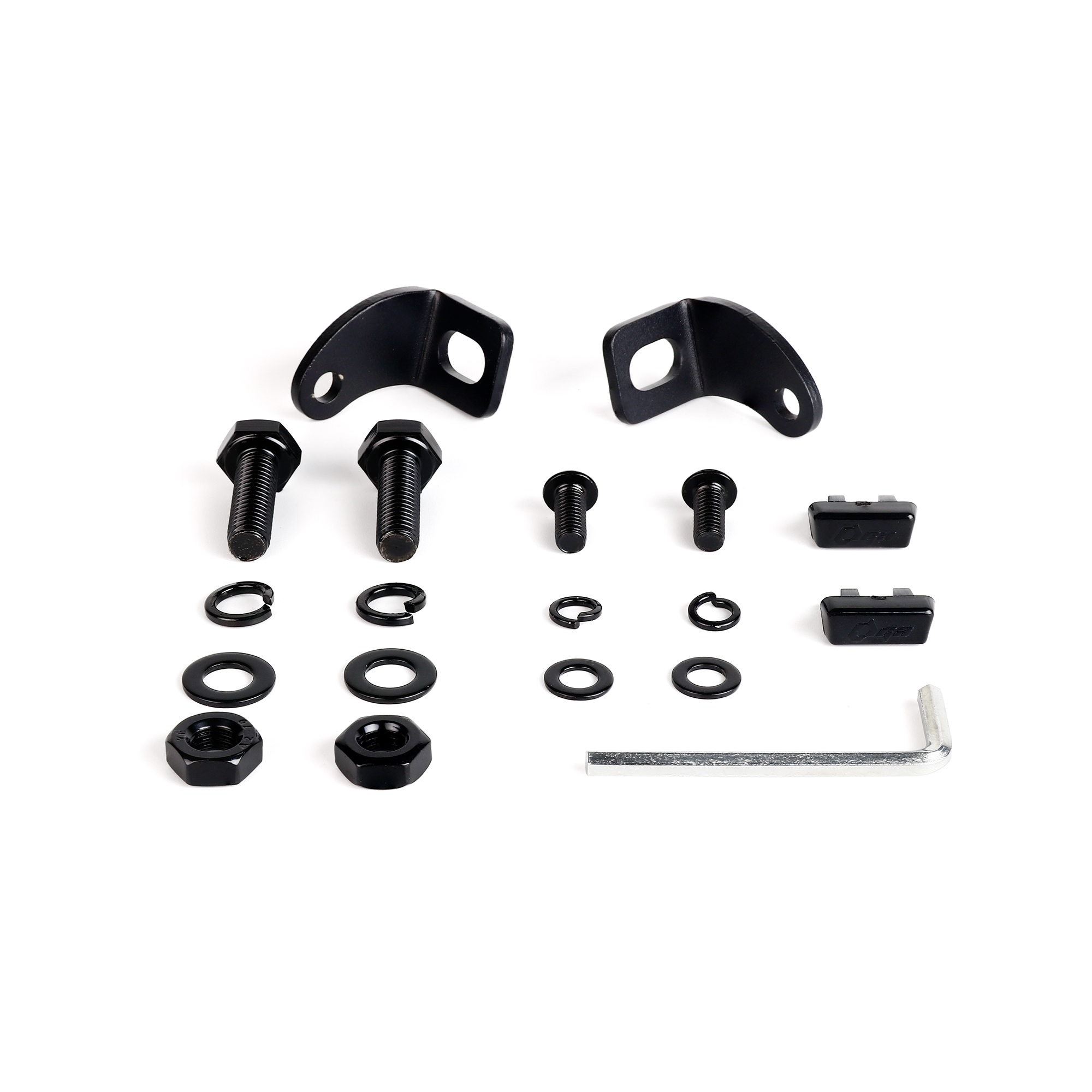

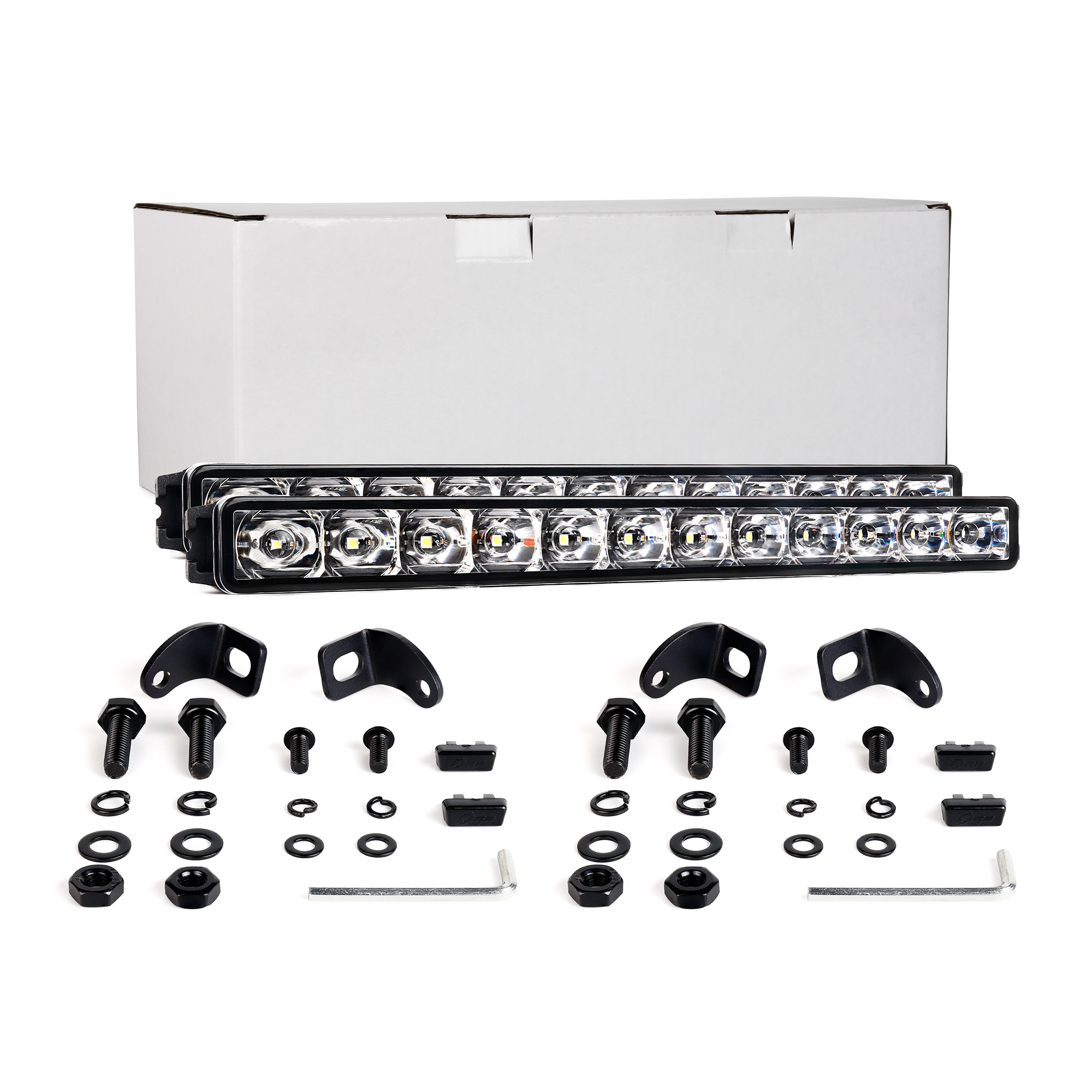

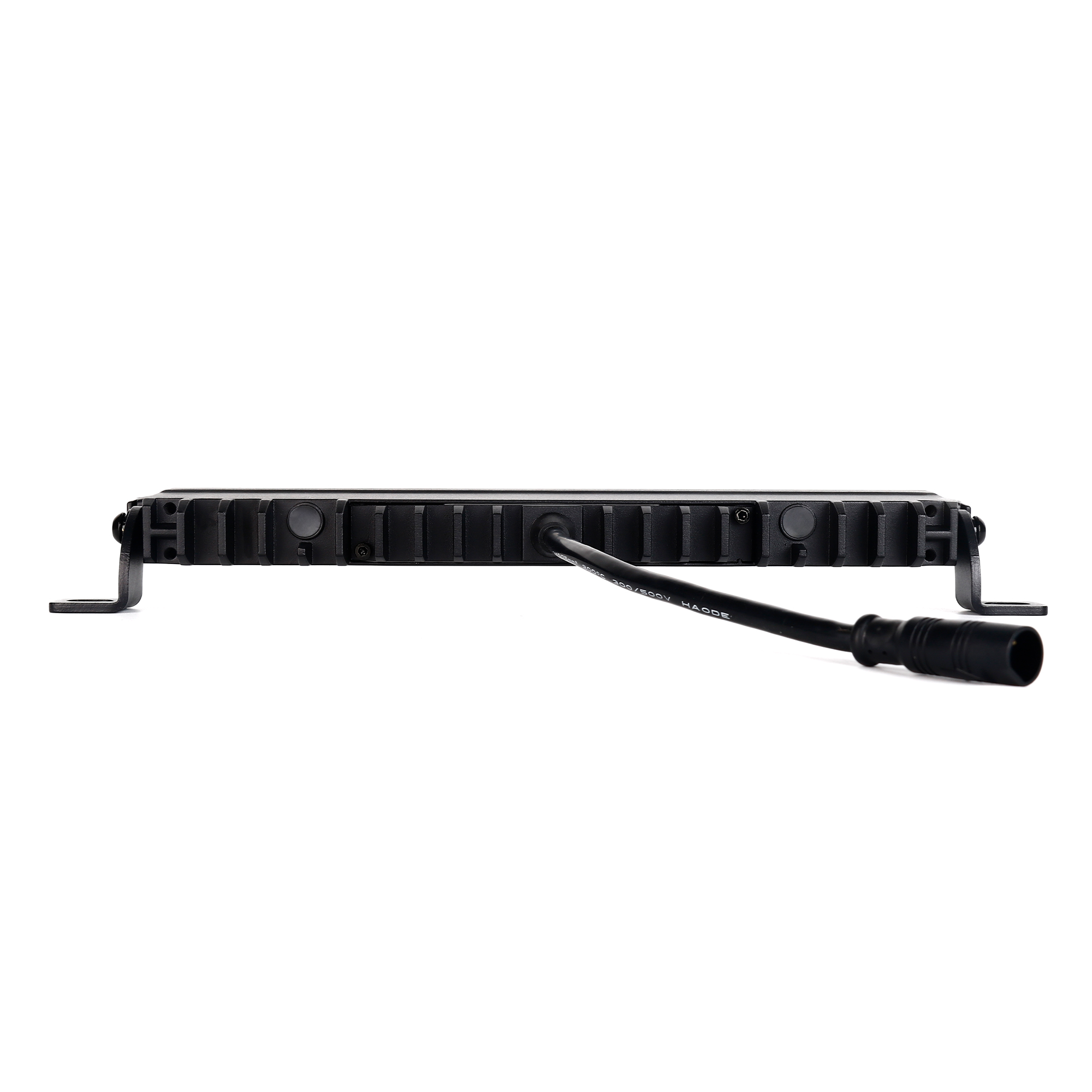

The 10 inch ultra slim body gives the light bar flexible installation possibilities on different vehicle positions. It can be installed on the front bumper for additional visibility, mounted near the grille for a cleaner integrated appearance, placed along roof rack areas, or used with customized brackets depending on the vehicle structure. Because the body is slim and modular, it can support cleaner installation layouts while still providing focused long range auxiliary lighting. This makes it practical for off road vehicles, pickup trucks, SUVs, work vehicles, and custom builds that need a compact and professional auxiliary lighting solution.

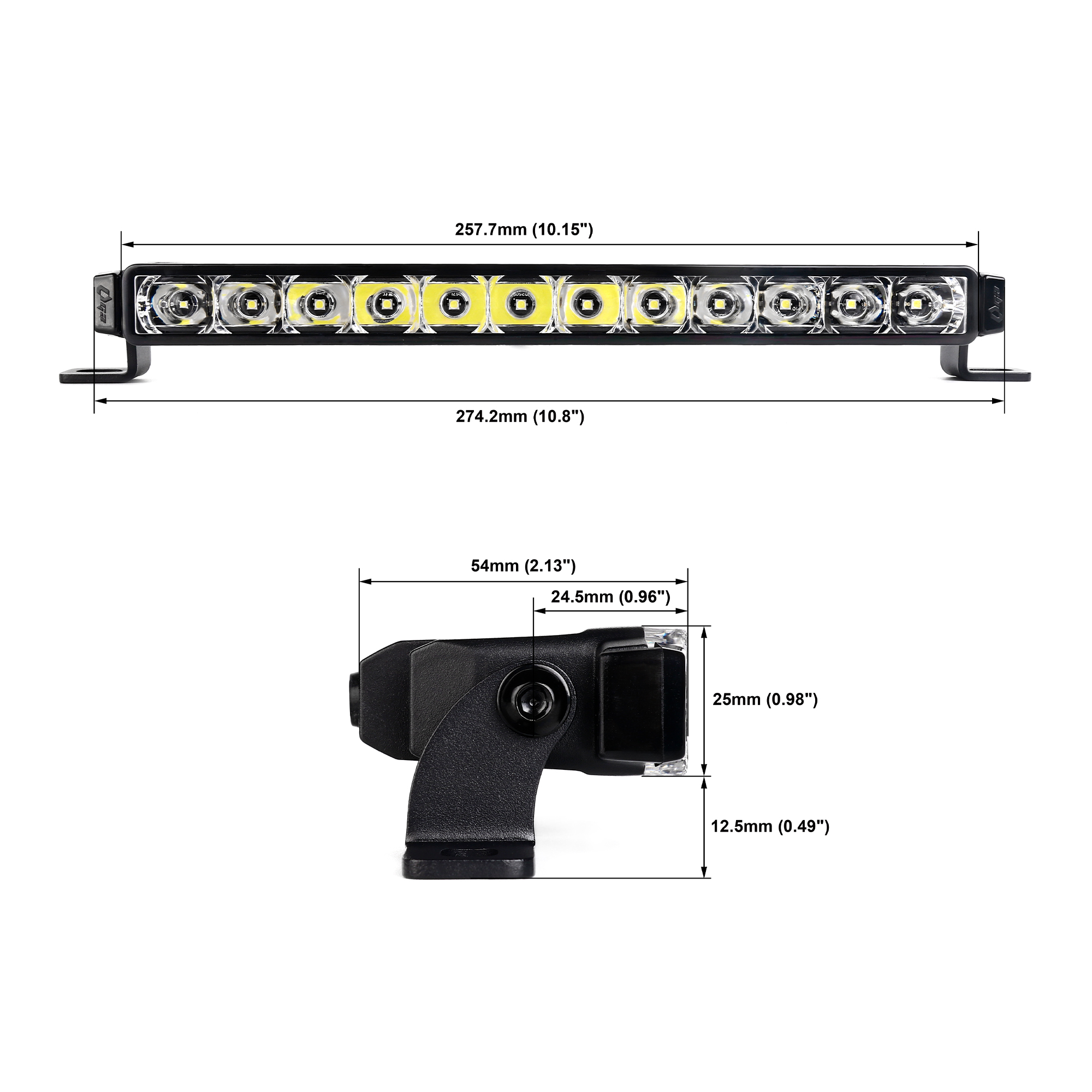

I Product Size
