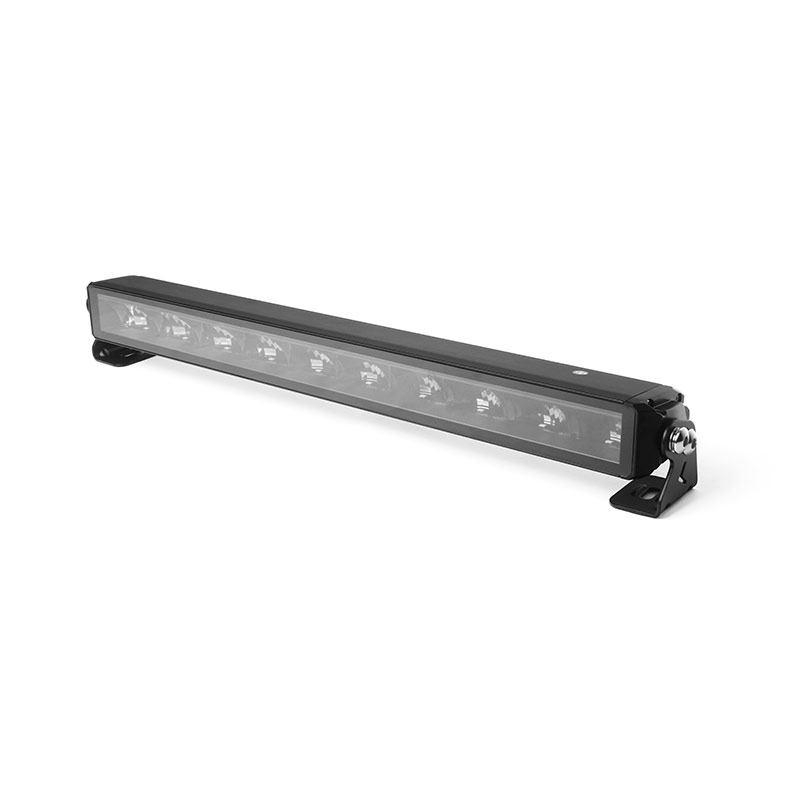

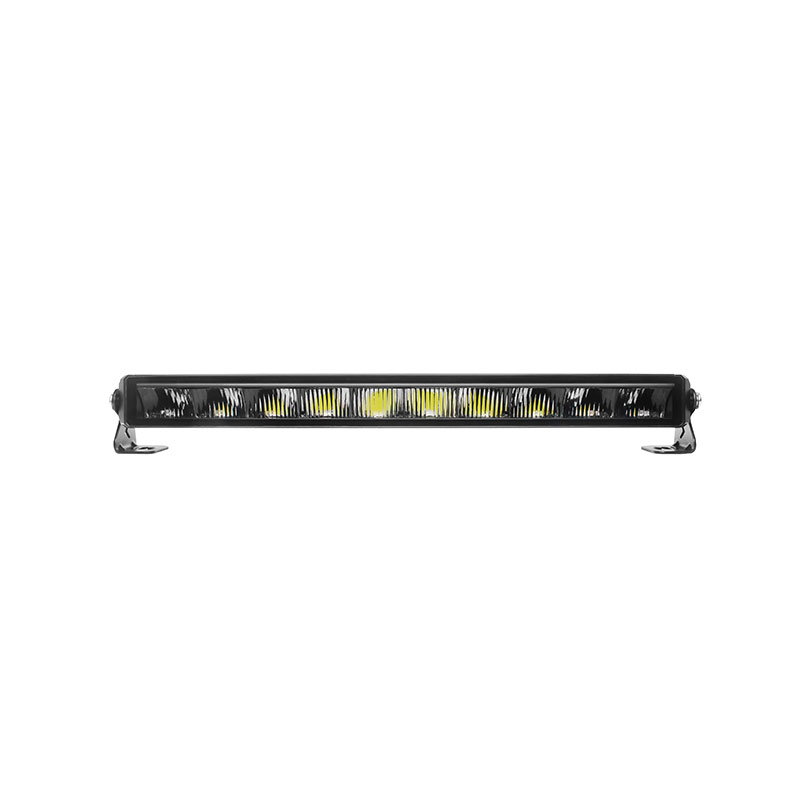

OGA 22 inches innovative bezel-less single row LED light bar wholesale

SKU# 4KBD10

Usage: driving+position Lumens: 5596LM+17LM Color Temperature: 5500K+6000K Warranty: 2 years

◆ Using high-performance LED chips

◆ Indirect light emitting

◆ Edge-to-edge infinity lens design

◆ Hidden LED position light design

◆ Versatile mounting options

◆ IP67 waterproof rated

Wholesale request

Details PDF download-1 PDF download-2

Best Off Road LED Light Bar

I Product specifications

PRODUCT NAME	OGA-58-22"-DP	THEORETICAL LUMENS	6500LM
LED SOURCE	10 x 12W HFL3 LED + 36 x 0.5W 2835SMD LED	ACTUAL LUMENS	5596LM DRIVING+ 17LM POSITION
POWER OUTPUT	75W	VOLTAGE COMPATIBILITY	10-30V DC
COLOR TEMP.	5500K DRIVING+ 6000K POSITION	WARRANTY	2 YEARS

I Features

Edge-to-edge Infinity Lens Design
Bezel-less design with no use of mounting screws on the lens not only gives the light bar an innovative look and a clearer view but also makes it easier to clean off the dust, less air resistance and more gas-saving;
The housing, the bracket and even the breather are all black coated, the all-black look gives the light bar a fresh and premium appearance.

Indirect Light Emitting
Different from the regular reflector on the market, the reflector we used is a high-efficient chrome reflector, and with the transparent cover lens being anti-UV and scratch resistant after surface hardens, the light bar can minimize the loss of light efficiency and lessen the stray light emission.

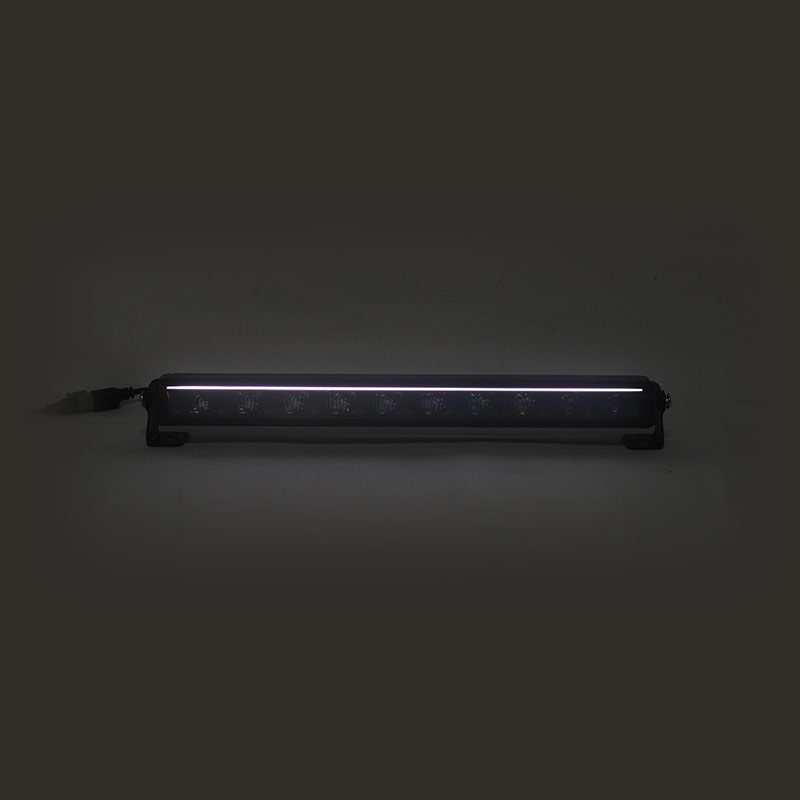

Hidden LED Position Light Design
A very slim LED position light was built inside the LED light bar, which gives the light bar a very special look while the light bar is off.

Using high-performance LED chips and built with a fast heat dissipation system, avoid over-heated to ensure lasting high-power performance.

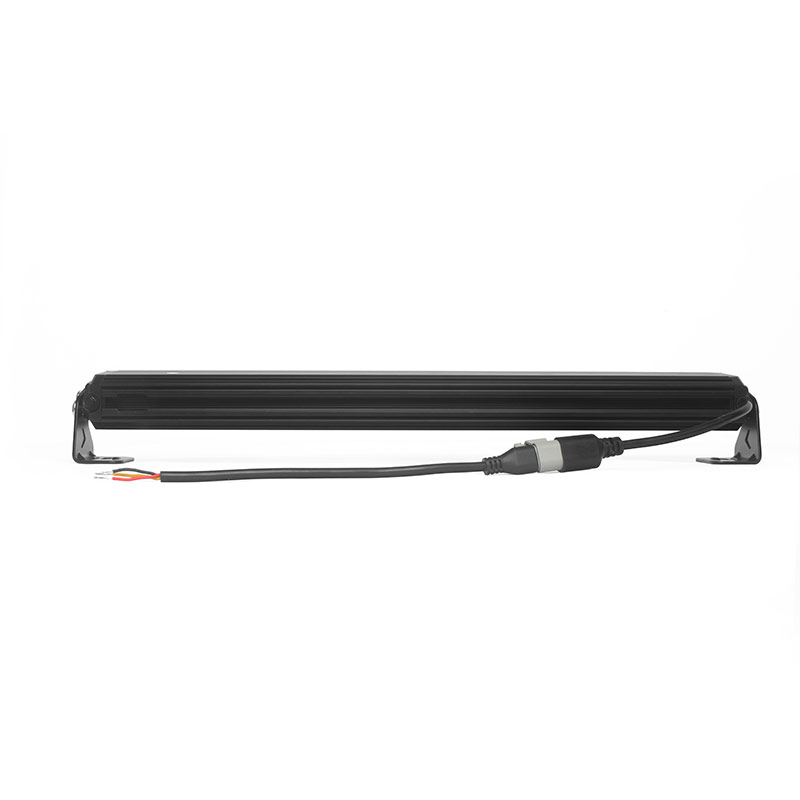

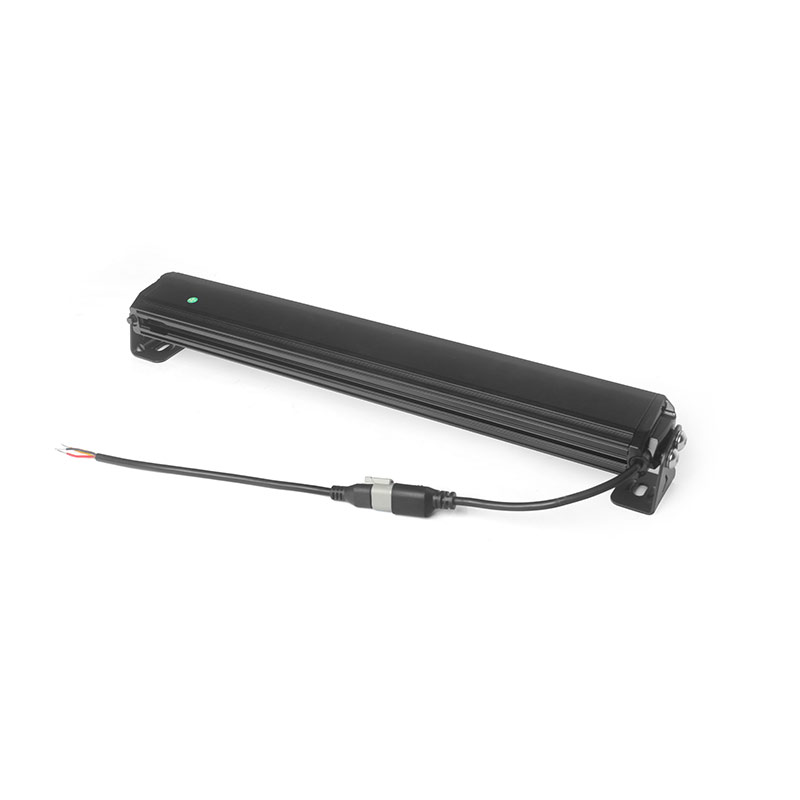

The light bar comes with a DT female connector and a separate DT male connector pigtail to keep the light plug and play.

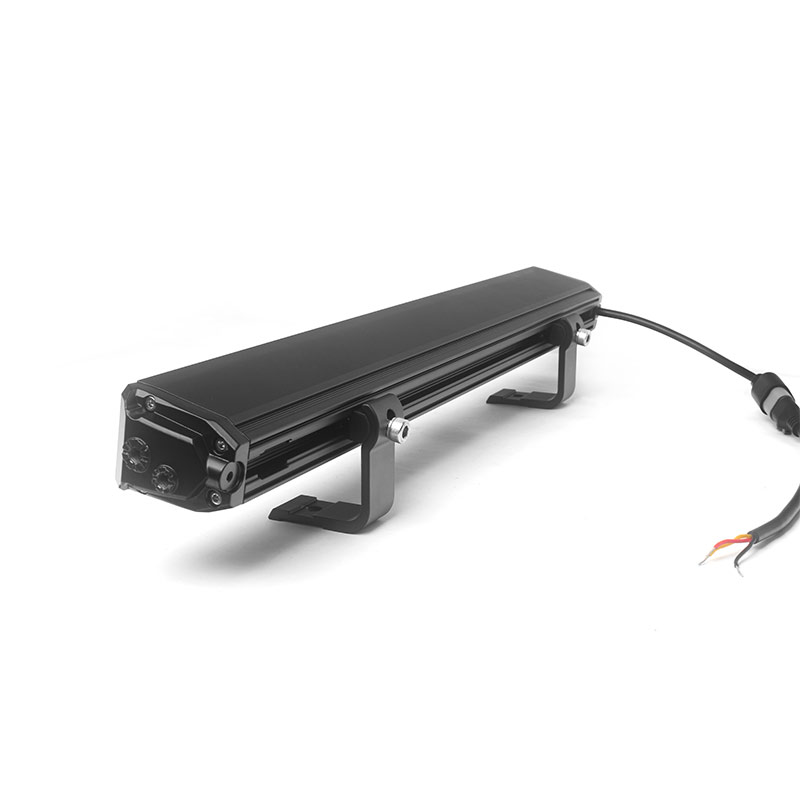

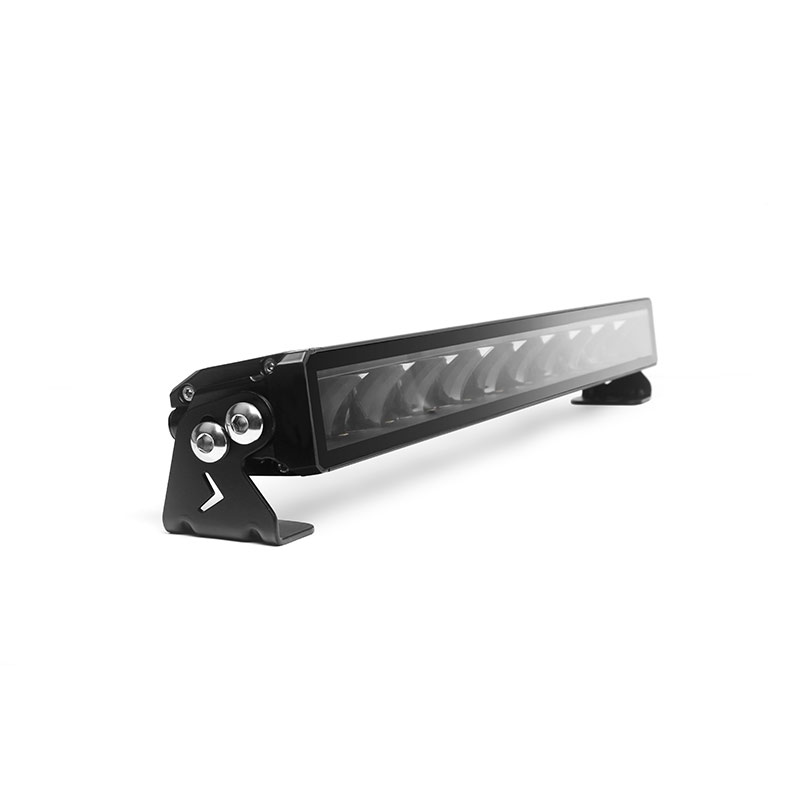

Versatile Mounting Options
Available at side mount and bottom mount, the side mount can be adjusted within a certain amount of length to suit different mounting positions.

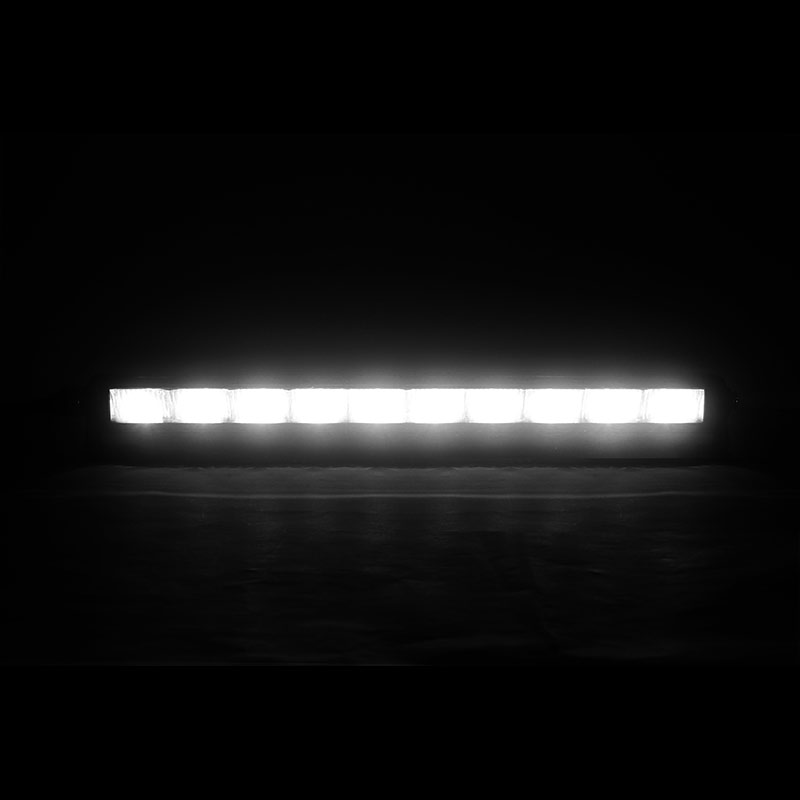

ECE Regulation R10, R112 and R7 certificated. A beautiful combination of the professional, precise driving beam pattern and the clear, slim LED position light.

IP67 Waterproof rated.

I Product Size

WHOLESALE REQUEST

Want to be OGA LED's business partner?
Please fill out the wholesale request form below, and we'll contact you with information shortly.

Upload Your Files

Upload Your Files or Contact to Get Instant Quote (Please attach any relevant files, including 2D CAD drawings, 3D CAD models, specifications, images, PDFs, ZIPs, etc.).

Upload files

max file size: 20MB
